3m Fiber Optic Patch Cord

3m Fiber Optic Patch Cord
3m Fiber Optic Patch Cord 3m Fiber Optic Patch Cord

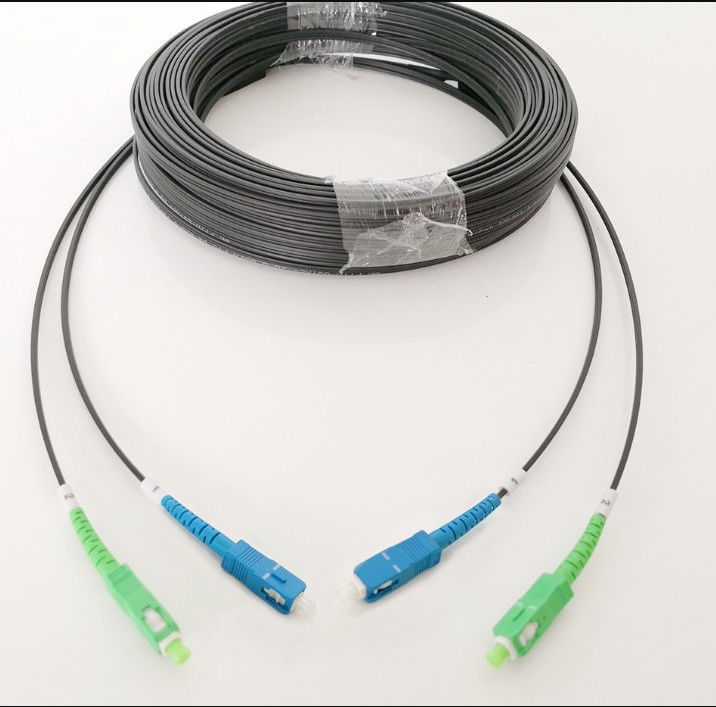

Large Image :  3m Fiber Optic Patch Cord

Product Details:
Place of Origin: China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: UL/ CE/ ETL/ ROHS/ ANATEL
Model Number: fiber optical patch cord
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Meters
Price: Negotiation
Packaging Details: 1000 Meters
Delivery Time: 3-7Work Day
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 100000 Meters/Day

3m Fiber Optic Patch Cord

Description
Model NO: Fiber Optical Patch Cord Connector Type: SC-SC LC-LC FC-FC ST-ST Or Hybrid
Length: 1m 2m 3m Or Customized Material:: PVC/LSZH
Real Factory: Yes Connector: SC/APC
Product Name: Duplex Armour SC LC APC UPC Outdoor Gpon Fiber Optic Patch Cord
High Light:

UPC fiber optic patch cord

,

3m fiber optic patch cord

,

3m single mode fiber patch cord

20M 30M 40M 50M 60M Outdoor Drop Cable SC UPC Simplex Singlemode Patch Cord FTTH Fiber Optic



Product details

The fiber optic drop cable patch cord has two connectors in each end of the cable to make connection; pigtail cable is one cable with a connector. The connectors are with SC type, ceramic ferrule to be polished as UPC . A SM convertion patch cord is with two different connector.

FTTH Optical fiber patch cord is made up by optical communication unit, strengthen pieces and the sheath composition, that is put the optical communication unit in the middle, both sides parallel place two root non-metallic strengthen members or metal strengthening component phosphate steel wire, finally squeeze the black or color sheath into cable.

Feature:

Special bending resistance of optical fiber, offer more bandwidth and enhance network transmission characteristic, easily achieve 100 M per second, and realize the broadband, CATV and phone combination of three nets.

Two of the parallel strengthen pieces make cable has good compression performance, protection of optical fiber.

Cable simple structure, light weight, the function is strong.

The unique groove design, easy separating, convenient in, easy installation and maintenance



Insertion Loss: ≤0.3dB

Return Loss: PC≥45dB UPC≥50dB APC≥60dB

Mating Times: Over 1000

Temperature: -40°C~+60°C

Tensile Strength: 45kg

Vibration Test: <0.1dB(5-50Hz, 1.5SM amplitude)

3m Fiber Optic Patch Cord 03m Fiber Optic Patch Cord 1

Type
SM-UPC
SM-APC
MM-UPC
Typical
MAX
Typical
MAX
Typical
MAX
Insertion loss
≤0.1
≤0.3dB
≤0.15
≤0.3dB
≤0.05
≤0.3dB
Return loss
≥50dB
≥30dB
≥30dB
Durability
500 mating cycles
Working temperature
-40 to + 85℃


Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.How to correctly choose between PVC LSZH and OFNP


FAQ

Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.

Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!

Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.

Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.

Q4:Time delivery?
1*20'GP: Within 10 days after receive deposit.
1*40'GP: Within 12 days after receive deposit.
1*40'HQ: Within 15 days after receive deposit.
For Stock items,only 2 days for delivery time.

Q5: Payment term?
T/T, , Money Gram, Paypal, etc.
