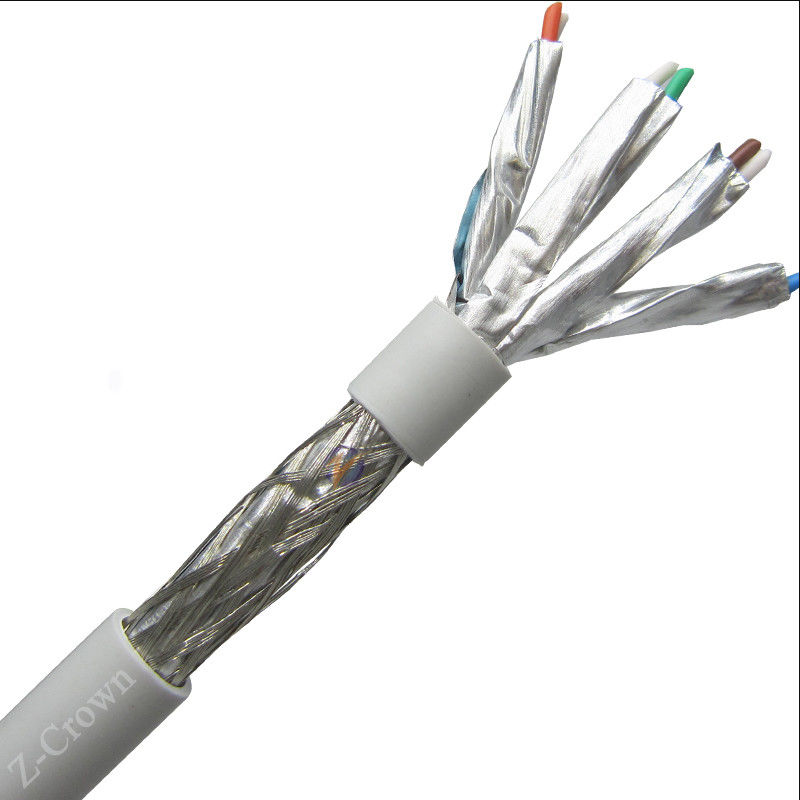

1000ft Cat 7 Network Cable

1000ft Cat 7 Network Cable
1000ft Cat 7 Network Cable 1000ft Cat 7 Network Cable

Large Image :  1000ft Cat 7 Network Cable

Product Details:
Place of Origin: China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: UL/ CE/ ETL/ ROHS/ ANATEL
Model Number: CAT7 S/FTP
Payment & Shipping Terms:
Minimum Order Quantity: 50 Boxes
Price: Negotiation
Packaging Details: 305 meter/drum
Delivery Time: 12-15 work days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 3000 Boxes/Day

1000ft Cat 7 Network Cable

Description
Wire Material:: 0.58mm Bare Copper Insulation:: Foamed PE
Shiled:: Al Foil Application:: Local Communication Cable, LAN Cable
Color:: Customized Sheath Material:: LSZH
Transport Length:: 1000ft (305m)
High Light:

FTP cat 7 network cable

,

1000ft cat 7 network cable

,

1000ft cat 7 shielded ethernet cable

10G High Speed 1000Mhz Double Shielded SSTP SFTP CAT7 CAT7A Etherent Lan Network Cable



Product Advantages

High Quality Material
99.99% Bare Copper Core
Twist Pairs
Close pairs twisted to achieve low loss
Incredible Durability
Durable PVC/ LSZH jacket for maximum curve protection and long life cycle
Environment Jacket
New flexible enviroment PVC/LSZH jacket
Product Description
Features
Precise triple-twist technology to achieve high transfer performance
Rated temperature over 75 °C
Minimum bending radius over 8D
RoHS/REACH Complied PVC, PE or LSZH Jacket
Reference Standard UL444
Fire resistance rate: CMP, CMR,CM optional
Complies to ANSI/TIA-568-C.2 &ISO/IEC 11801; EN50173&IEC61156-5

Application
Volp /ISDN/ Token
100Mbps TP-PDM
Analog and Data Video
TR-16 Active and Passive
155M/622M/1.2G ATM
IEEE 802.3-T: 10Base-T; 100Base-T; 1000Base-T;10GBase-T

ITEM
SSTP CAT7 CAT7A ETHERNET CABLE
Conductor
Solid bare copper (OFC)
AWG
22AWG/23AWG customized
Conductor Diameter(mm)
0.583±0.02
Insulation
Foam-skin PE
Insulation Average Thicknes
0.419mm(Min at any point:0.40mm)
Jacket
PVC/LSZH
Sheath Average Thickness
0.05mm(Min at any point:0.40mm)
Sheath Diameter
7.4±0.3mm
Elongation
Min.100%
Tensile Strength
Min.1.407 Kg/mm2
Aging at 100℃ for 168Hrs
Min.elongation retention:50%;Min.tensile strength retention:75%
Rip cord
Including
Color Code
Blue/White-Blue ;Orange/White-Orange ;Green/White-Green ;Brown/White-Brown
Spark Test
1050 V ac
Dielectric Strength
2500 V dc/3 seconds
Insulation Resistance Test
Min.150 MΩ/Km
Conductor Resistance
Max.9.38Ω/100m at 20℃
Resistance Unbalance
Max. 2%
Capacitance Unbalance
Max. 160 pF/100m
Mutual Capacitance
Max. 5600 pF/100m

1000ft Cat 7 Network Cable 01000ft Cat 7 Network Cable 1
