DATA SHEET CAT6 UTP LAN CABLE
Conductor:
Stranded Bare Copper (7 x 32 AWG)
Insulation:
HDPE (CMI-75E)
Nominal Wall Thickness: 0.178mm
Min. Thickness: 0.153mm

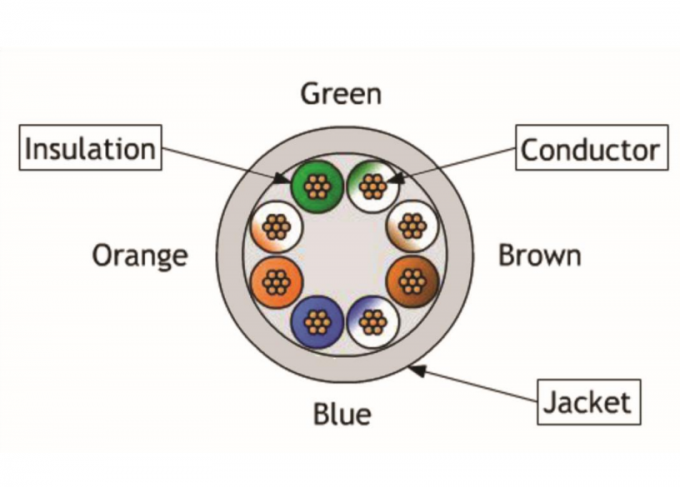

Color Code:
Pair 1: Blue & White/Blue
Pair 2: Orange & White/Orange
Pair 3: Green & White/Green Pair
Brown & White/Brown
Jacket (Grey):
75°C LSZH Compound
Nominal Wall Thickness: 0.585mm
Min. Thickness: 0.458mm
Overall Diameter: 5.8mm ± 0.3mm
Electric Requirements:
(Cable length: 300m)
Characteristic Impedance (Zo): 85~115Ω (1~250 MHz)
DC. Resistance Capacitance Unbalance: 5%
Pair-to-Ground Capacitance Unbalance: 330 pF/100m Max.
Conductor Resistance: 14.00Ω/100m 20o Max.
Mutual Capacitance: 5.6nF/m Max.
Spark Test: 2.5kV
Nominal Velocity of Propagation (NVP): 69%
