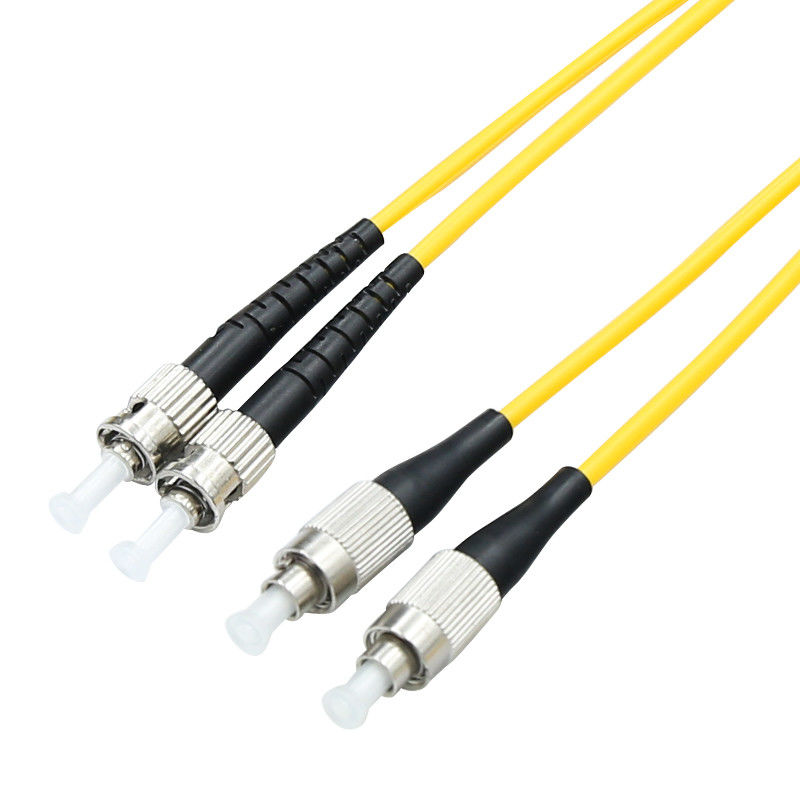

FTTH Duplex 3m Fiber Optic Jumper Cable , Multimode Fiber Jumpers

FTTH Duplex 3m Fiber Optic Jumper Cable , Multimode Fiber Jumpers
FTTH Duplex 3m Fiber Optic Jumper Cable , Multimode Fiber Jumpers FTTH Duplex 3m Fiber Optic Jumper Cable , Multimode Fiber Jumpers

Large Image :  FTTH Duplex 3m Fiber Optic Jumper Cable , Multimode Fiber Jumpers

Product Details:
Place of Origin: China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: UL/ CE/ ETL/ ROHS/ ANATEL
Model Number: fiber optical patch cord
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Meters
Price: Negotiation
Packaging Details: 1000 Meters
Delivery Time: 3-7Work Day
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 100000 Meters/Day

FTTH Duplex 3m Fiber Optic Jumper Cable , Multimode Fiber Jumpers

Description
Model NO: Fiber Optical Patch Cord Type:: Optical Fibers, PC/UPC/APC
Use:: FTTH Color:: Orange, Yellow, Blue, Aqua
Connetcor:: LC/SC/FC/ST Connector Type: SC-SC LC-LC FC-FC ST-ST Or Hybrid
Length: 1m 2m 3m Or Customized Material:: PVC/LSZH
High Light:

FTTH fiber optic jumper cable

,

FTTH 3m fiber optic jumper cable

,

FTTH 3m multimode fiber jumpers

Optical Fiber Patch Cord 3M SM UPC Optic Cable Jumper Wire Duplex High Quality Factory Good Price



Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability



Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃



Applications:

CATV / Metro, Active device termination,Telecommunication networks, Local Area Networks (LANs)Data processing networks, Test equipment, Premise installations, Wide Area Networks (WANs)


PARAMETER

UNIT
FC, SC, LC, ST, MU
MT-RJ, MPO
SM
MM
SM
MM
Insertion Loss
dB
PC
UPC
APC
PC
PC
UPC
PC
Return Loss
dB
≤0.3
≤0.2
≤0.3
≤0.2
≤0.3
≤0.2
≤0.2
Operating Wavelength
nm
≥45
≥50
≥60
≥30
≥45
≥50
≥35
Exchangeablity
dB
1310, 1510
Vibration
dB
≤0.2
Operation Temperature
≤0.2
Storage Temperature
-45℃ to 75℃
Cable Diameter
mm
-45℃ to 85 ℃



PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.How to correctly choose between PVC LSZH and OFNP

FTTH Duplex 3m Fiber Optic Jumper Cable , Multimode Fiber Jumpers 0FTTH Duplex 3m Fiber Optic Jumper Cable , Multimode Fiber Jumpers 1

FAQ

Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.

Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!

Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.

Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.

Q4:Time delivery?
1*20'GP: Within 10 days after receive deposit.
1*40'GP: Within 12 days after receive deposit.
1*40'HQ: Within 15 days after receive deposit.
For Stock items,only 2 days for delivery time.

Q5: Payment term?
T/T, , Money Gram, Paypal, etc.
