CATV Signal TV Cable

CATV Signal TV Cable
CATV Signal TV Cable CATV Signal TV Cable

Large Image :  CATV Signal TV Cable

Product Details:
Place of Origin: Guangzhou,China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: CE/ RoHS/ ETL/ ISO
Model Number: RG59/RG58/RG6/RG11
Payment & Shipping Terms:
Minimum Order Quantity: 20000 Meters
Price: Negotiation
Packaging Details: 100 Meters/ Box
Delivery Time: 12-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 100000 Meters/ Day

CATV Signal TV Cable

Description
Conductor Material:: CCA/CCS/CU Conductor Size:: 0.8mm-1.02mm
Braiding:: Customized Insulation:: CCTV Camera Cables
Jacket:: PVC Name:: RG59 Coaxial Cable
Model Number:: CATV Satellite Impedance:: 75 Ohm
High Light:

Rg11 Signal TV Cable

,

CATV Signal TV Cable

,

Rg11 coaxial aerial cable

Coaxial Cable CCS Copper CCA CATV RG6 Rg58 Rg59 Rg11 Coaxial TV Signal Cable

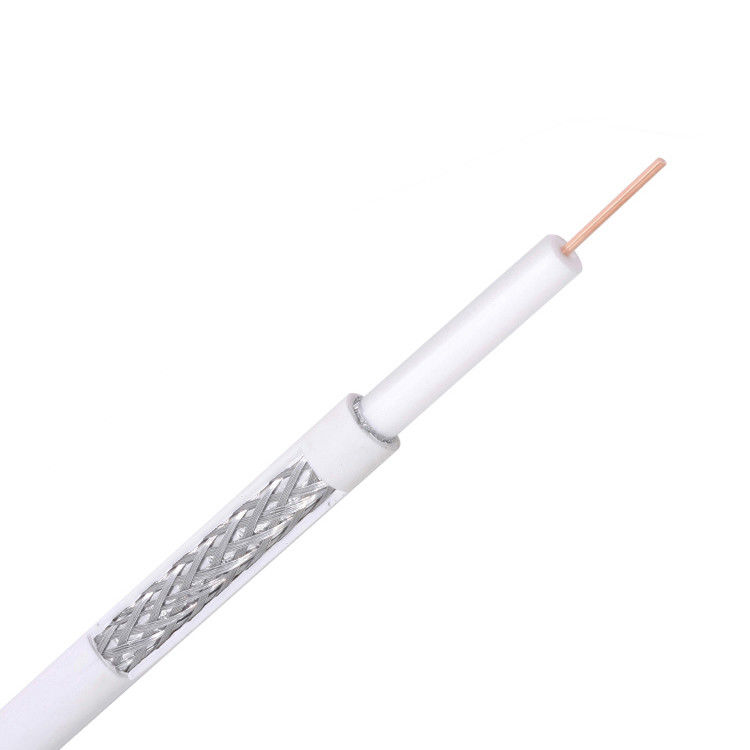

Product structure

Conductor :Solid bare copper

Insulation: Solid PE

Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids

Jacket:polyvinyl chloride / FR-PVC

Electrical characteristics

Impedance:75±3OHM

Capacitance:66±3pF/m

Max attention: 20°C

Flammability grade: CMX, CM

Operating temperature: -25~70°C or -40~70°C

Insulation resistance: 5000MOHM/km

Reference GB/T14864-93 Standards.

Description for RG58U with power cable

Mainly used for the distribution and access of electronic communication equipment,

RF transmitter unit of communication system, building cabling and CATV;

the most striking features are broadband and high speed; currently,

also widely used in the multimedia transmission field; conforms to RG58U.



Product Description

item
value

Model
101001 101002 101003
Inner conductor
BC/CCS/CCA
Jacket
PVC or PE
Impedance
75 ohm/50ohm
Certification
CE/ROHS/ISO9001
Type
RG6/RG58
Shield
A/P/A, A/P Foil, copper Foil

Frequency(MHz)
dB/100ft(max.)
dB/100m(max.)
5
1.1
1.95
55
1.6
5.25
750
5.66
18.54
1000
6.55
21.49

CATV Signal TV Cable 0CATV Signal TV Cable 1


FAQ:


Q. How long is the warranty?

A. We offer 1-years-warranty


Q. How long is the delivery time?
A. 3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Q. Why do you choose us?
A. We are the leading manufacturer in CCTV Cables and Electronic Cables industry, we have more than 10 years experiences in this field.
Work with us, you will always get top quality with fair price.
