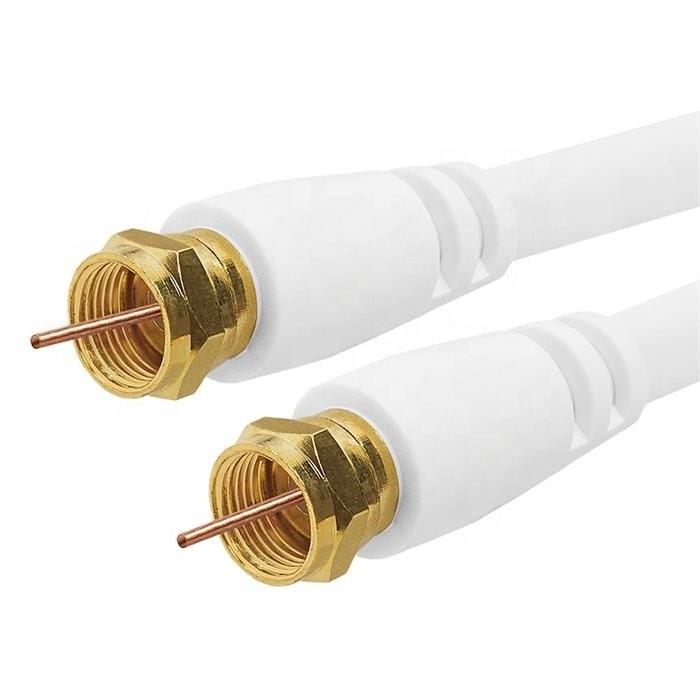

FPE 1000ft Length HDPE Coaxial TV Cable For Internet

FPE 1000ft Length HDPE Coaxial TV Cable For Internet
FPE 1000ft Length HDPE Coaxial TV Cable For Internet FPE 1000ft Length HDPE Coaxial TV Cable For Internet FPE 1000ft Length HDPE Coaxial TV Cable For Internet FPE 1000ft Length HDPE Coaxial TV Cable For Internet FPE 1000ft Length HDPE Coaxial TV Cable For Internet FPE 1000ft Length HDPE Coaxial TV Cable For Internet

Large Image :  FPE 1000ft Length HDPE Coaxial TV Cable For Internet

Product Details:
Place of Origin: Guangzhou,China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: CE/ RoHS/ ETL/ ISO
Model Number: RG6 Coaxial Cable
Payment & Shipping Terms:
Minimum Order Quantity: 30000 meters
Price: Negotiation
Packaging Details: 100m/roll , 200m/roll , 305m /roll , 500m/roll
Delivery Time: 12-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 200000 Meters per Week

FPE 1000ft Length HDPE Coaxial TV Cable For Internet

Description
Application:: CCTV Jacket:: PVC LSZH LSOH PE HDPE
Conductor:: Copper CCA CCS Insulation:: FPE
Color:: Black Length:: 305m 1000ft
Number Of Conductor:: 1 Package:: Wooden Reel
High Light:

HDPE Coaxial TV Cable

,

1000ft Length Coaxial TV Cable

,

FPE Antenna Connector Cable

RG6 F Connector Coax Coaxial Cable TV Antenna Connector Cable RG6 Coax Cable For Internet



Products Description:





Standard
TRI-Shield
QUAD-Shield
Conductor
material
BC/CCA/CCS
BC/CCA/CCS
BC/CCA/CCS
Nom.Dia.
1.02mm
1.02mm
1.02mm
Dielectric
material
Foam PE/Solid PE
Foam PE/Solid PE
Foam PE/Solid PE
Nom.Dia
4.8mm
4.8mm
4.8mm
Shield
Material
AL Foil+AL/BC/CCA Braiding+Al Foil
AL Foil+AL/BC/CCA Braiding+Al Foil
(AL Foil+AL/BC/CCA Braiding)*2
Coverage
45%-95%
45%-95%
60%/40%
Jacket
Material
PVC/PE
PVC/PE
PVC/PE
Nom.Thick
0.8mm
0.8mm
0.8mm
Nom.Dia.
6.8mm
7.06mm
7.42mm
Attenuation
Frequency(MHZ)
Maximum(dB/100ft)
Maximum(dB/100m)
5
0.58
1.9
55
1.6
5.25
187
2.85
9.35
300
3.55
11.64
450
4.4
14.43
600
5.1
16.73
750
5.65
18.54
865
6.1
20.01
1000
6.55
21.49
Nominal Impedance(Ohm)
75+/-3
Nominal Velocity of Propagation(%)
85
Nominal Capacitance(pF/m)
50
Speaker Test(VAC)
4000
SRL(dB)
20







FPE 1000ft Length HDPE Coaxial TV Cable For Internet 0FPE 1000ft Length HDPE Coaxial TV Cable For Internet 1FPE 1000ft Length HDPE Coaxial TV Cable For Internet 2

FPE 1000ft Length HDPE Coaxial TV Cable For Internet 3





Technological Process

FPE 1000ft Length HDPE Coaxial TV Cable For Internet 4



Testing Instrumentation

FPE 1000ft Length HDPE Coaxial TV Cable For Internet 5



Delivery &Packing

1). Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.

FPE 1000ft Length HDPE Coaxial TV Cable For Internet 6





FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well







Our Factory Are Professional Manufacturer In Producing Widely Product Range Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat8

Utp/Ftp/Sftp/Stp Network Cable,

Power Cable,Coaxial Cable,

Telephone Cable Etc.



Welcome To Visit Our Factory !
