Place of Origin:
CHINA
Brand Name:
OEM/ODM/YUEXIANKE
Certification:
Unilever/ROSH/CE/ANATEL/ISO/CPR/ETL
Model Number:
Cat6
Video
| Cable Overview |
Material Instruction
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.
Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.
DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.

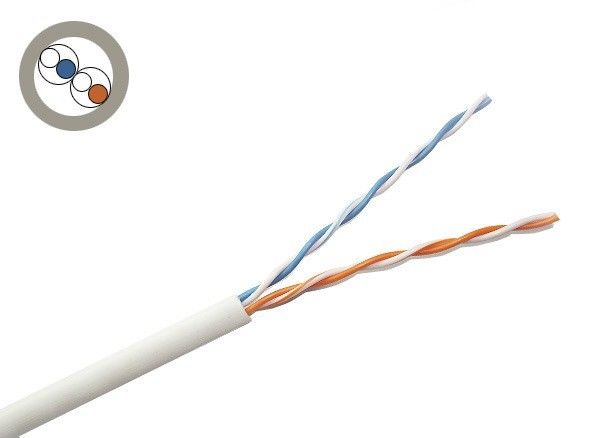

| Item Name | UTP CAT6 Lan Cable |
| TYPE | Cat6 |
| Construction | UTP |
| Conductor | CCA/23AWG Solid Copper |
| Number of Conductors | 8 |
| Insulation Material | HDPE |
| Cross Material | PP |
| Application | Lan cable |
| Jacket | PVC/LSZH |
| Rip cord | Nylon |
| Operating temperature | -20 ° C - +60 ° C |
| Standard | EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS |
| Certificate | CE/ISO/RoHS Approved |
| OEM / Related Production For Lan Cable |
OEM custom-made production according to different customer's request. Shape, PVC ,color, Conductor diameter, degree of tightness, logo design, Inner and Outer package design, all of below request are available.
| Product | Network Lan Cable |
| Type | CAT3/CAT5E/CAT6/CAT6A/CAT7 |
| Conductor | 23 AWG/24 AWG/26 AWG BC/CCA |
| Insulation | HDPE (high density polyethylene) |
| Shielding | Pet Tape/ Aluminum Foil |
| Ripcord | Nylon |
| Cross | PP |
| Drain Wire | 0.40mm tinned copper/CCA or BC |
| Jacket | PVC/LSZH/PE |
| Operating temperature | -20 ° C - +60 ° C |
| Working Life | 20~25 years |
| Applications | Computer network cabling project |
| Broadband network communication | |
| Digital ISDN network and ATM 155mbps network | |
| Long distance and local area network commubication |
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in dongguan city.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), , Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? (How long do you need to prepare my goods?
A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well.
