Product Details:
|
| Wire Material:: | 0.62mm Bare Copper | Insulation:: | Foamed PE |
|---|---|---|---|
| Shiled:: | Al Foil | Application:: | Local Communication Cable, LAN Cable |
| Color:: | Customized | Sheath Material:: | LSZH/PVC |
| Transport Length:: | 500M | Jacket Color: | Yellow / Gray / Blue Or As Required |
| High Light: | 22AWG CAT8 LAN Cable,CAT8 LAN Cable,22AWG cat8 ethernet cord |
||

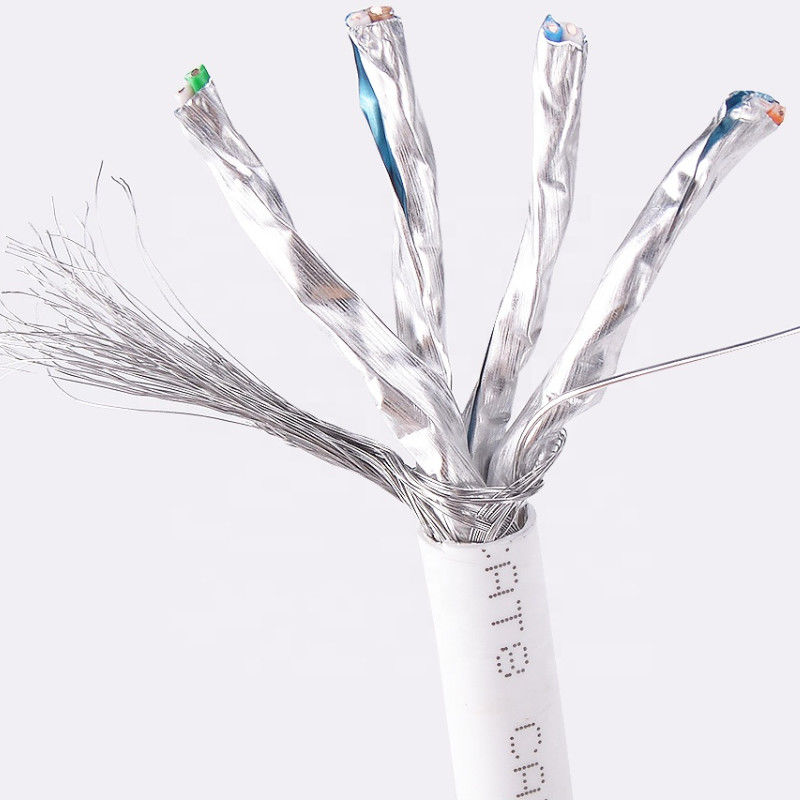

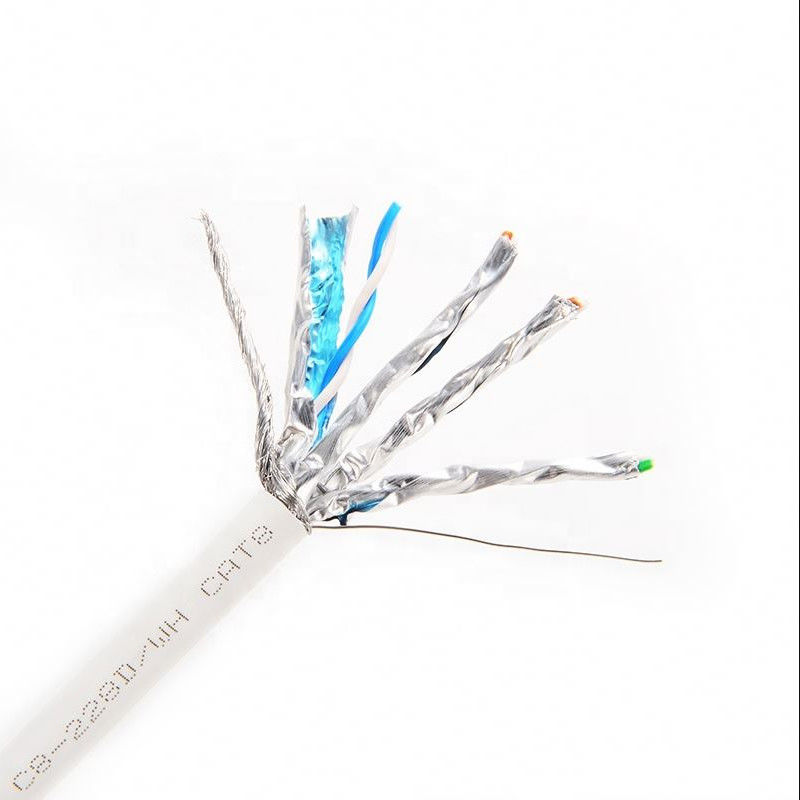

22AWG 4pair solid bare copper or CCA LSZH high speed network cable CAT7 SFTP CAT8 S/FTP CAT8 lan cable
| Meterial Description |
| SURELINK SFTP CAT8 | ||||
| Description: Product Description: 4P S/FTP CAT8 22AWG LSZH Reference standard: ANSI/EIA 568.2-D & ISO/IEC 11801 Rated temperature: 60℃ |
Application: 100 Base-TX 100 Base-T 1000 Base-T(Gigabit Ethernet) 1000 Base-TX 155Mbps ATM 622Mbps ATM 10Gb Ethernet |
|||
| Data Sheet | ||||
| Structure | Construction | S/FTP |
|
|
| Number of pairs | 4Pairs | |||
| Conductor | AWG | 22AWG | ||
| Material | Solid copper | |||
| Conductor dimension (mm) | 1/0.65±0.01 | |||
| Insulation | Insulation Material | FOAM PE | ||
| Insulation dimension(mm) | 1.55±0.05 | |||
| Pairs | 1 | White/Blue | ||
| 2 | White/Orange | |||
| 3 | White/Green | Electrical Characteristics | 1-2000MHZ | |
| 4 | White/Brown | Max. delay skew ≤ 13.5ns/30 m | ||
| Filler | Filler material | N/A | Max. conductor resistance 2.4ohm/30m | |
| Binder | Binder material | N/A | Max. conductor resistance unbalance 4% (@ 20 ℃) | |
| Shield | Individual shield & material | Alumimum foil | Min. insulation resistance 5000Mohm km | |
| overall shield & material | N/A | Capacitance unbalance ≤99pF/30m | ||
| overall shield & material | AL-MG Braid | Nominal velocity of propagation 77% | ||
| Shield coverage | above 40% | Mechanical Characteristics | Outer jacket tensile strength above 10Mpa | |
| Drain wire | 1/0.32 BC | Outer jacket elongation above 125% | ||
| Outer jacket | Outer jacket material | LSZH | Outer jacket aging condition 100℃ x 168hrs | |
| Outer jacket nominal thickness(mm) | 0.75±0.05 | After aging, Tensile strength above 8Mpa | ||
| Overall dimension (mm) | 8.0±0.3 | After aging, Elongation above 100% | ||
| Outer jacket colour | Per customer request | Cold bend No crack (@-20℃x4hrs) | ||
| Outer jacket rip cord | N/A | Hot impact NO Crack(@150℃x4hrs) | ||
| Packing | 500METERS WOODEN DRUM | |||
| Marking | SURELINK CAT8 S/FTP 22AWG 4PAIRS TIA/EIA -568D.2 ISO/IEC 11801 PATCH CORD LSZH |
|||
| OEM / Related Production For Lan Cable |
OEM custom-made production according to different customer's request. Shape, PVC ,color, Conductor diameter, degree of tightness, logo design, Inner and Outer package design, all of below request are available.
| Product | Network Lan Cable |
| Type | CAT3/CAT5E/CAT6/CAT6A/CAT7/cat8 |
| Conductor | 22AWG/23 AWG/24 AWG/26 AWG BC/CCA |
| Insulation | Foam PE |
| Shielding | Pet Tape/ Aluminum Foil |
| Ripcord | Nylon |
| Cross | PP |
| Drain Wire | 0.40mm tinned copper/CCA or BC |
| Jacket | PVC/LSZH/PE |
| Applications | Computer network cabling project |
| Broadband network communication | |
| Digital ISDN network and ATM 155mbps network | |
| Long distance and local area network commubication |
| Main Cable Categories Provided by Us |
1.Optical Fiber Cable and Patch Cord
2.Lan and Network Cable and Patch Cord
3.Alarm Cable and Speaker Cable
4.Drop Wire and Telephone Cable
5.Communication Cable
6.Coaxial Cable
7.Electrical Wire and Power Cable
8.Telecom Accessory.
FAQ
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in dongguan city.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), , Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? (How long do you need to prepare my goods?
A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well.
