Place of Origin:
CHINA
Brand Name:
OEM/ODM/YUEXIANKE
Certification:
Unilever/ROSH/CE/ANATEL/ISO/CPR/ETL
Model Number:
Cat5E

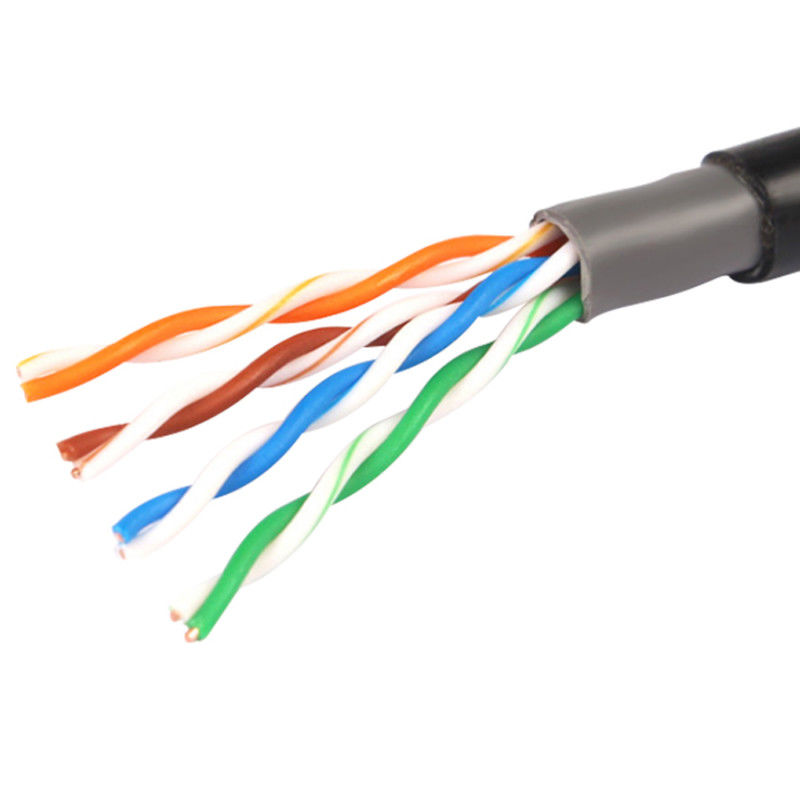

SFTP CAT5E Solid Copper Outdoor 24AWG 4pairs Lan Cable Network Ethernet Cable
Cable Overview |
Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PE Jacket , high-temperature resistance,long working life.
Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.
Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
Transmission Performance for reference
Cable Specification |
Item Name | SFTP CAT5E Lan Cable |
TYPE | Cat5E |
Conductor | CCA or 24AWG Solid Copper |
Number of Conductors | 8 |
Insulation Material | HDPE |
Shielding | PET/ Aluminum Foil and Tinned copper braiding |
Application | Lan cable |
Jacket | PE |
Operating temperature | -50 ° C - +70 ° C |
Standard | EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS |
Certificate | CE/ISO/RoHS Approved |
