Place of Origin:
Guangzhou,China
Brand Name:
OEM/ ODM/ YUEXIANKE
Certification:
ETL/ CE/ UL/ ANATEL/ RoHS
Model Number:
CAT6/CAT5E
Video
Video
Video

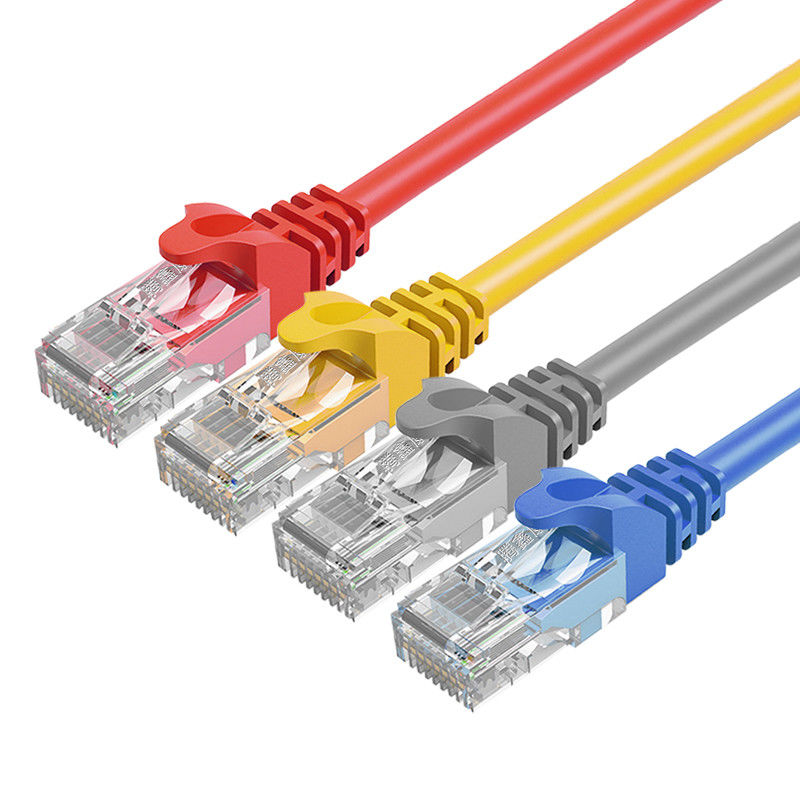

PVC Jacket Flexible Unshielded 4 pairs Cat5e CAT6 UTP RJ45 Network Patch Cord
Length:0.5m/1m/1.5m/2m/3m/5m/8m/10m/12m/15m/20m/25m/30m/40m/50m
| Product Description |
Feature different strand lay-length, keeping good NEXT and FEXT, anti-electromagnetic disturbimprovement .
Structure bare copper, PE insulation, FR PVC/LSOH PVC jacket, twinning structure, flexible added, easily cabling.
Telephone cable trunk transmission .
High-performance data cable,application structured cabling ,CCTV system ,Alarm system,Telecom project etc.
Can be used for voice ,integrated service data network.
Specification
| UTP CAT5E PATCH CORD | |
| MODEL: | CAT5E |
| Specifications: | 4 pairs |
| Conductor: | 7*0.2mm/7*0.16mm/7*0.14mm/7*0.12mm |
| Conductor Material: | CCA/CCU/BC |
| Number Of Conductor | 8 WIRE |
| Shield: | UTP |
| Insulation Resistance | 10000 Mohm. km |
| Color: | Blue, orange, grey, red, etc |
| Meters: | 0.5m/1m/1.5m/2m...... |
| Insulation: | PE,HDPE,LSZH PE |
| Insulation Diameter: | 0.9 |
| Flammability Grade | Flammability Grade |
| Insulation | Thickness |
| Jacket: | PVC, ROHS PVC, LSZH PVC |
| Outer Jacket Thickness | 5.2mm |
| DC Resistance(Max.) | 9.5ohm/100m |
| Insulation Resistance | 10000 Mohm. km |
| Transmission Velocity | 0.65 |
| Working Capacitance(Max.) | 5.4nF/100m |
| Marking On Jacket | On your request (Print your brand) |
| Application: | PC, ADSL, network Module Plate, Wall Socket, etc |
