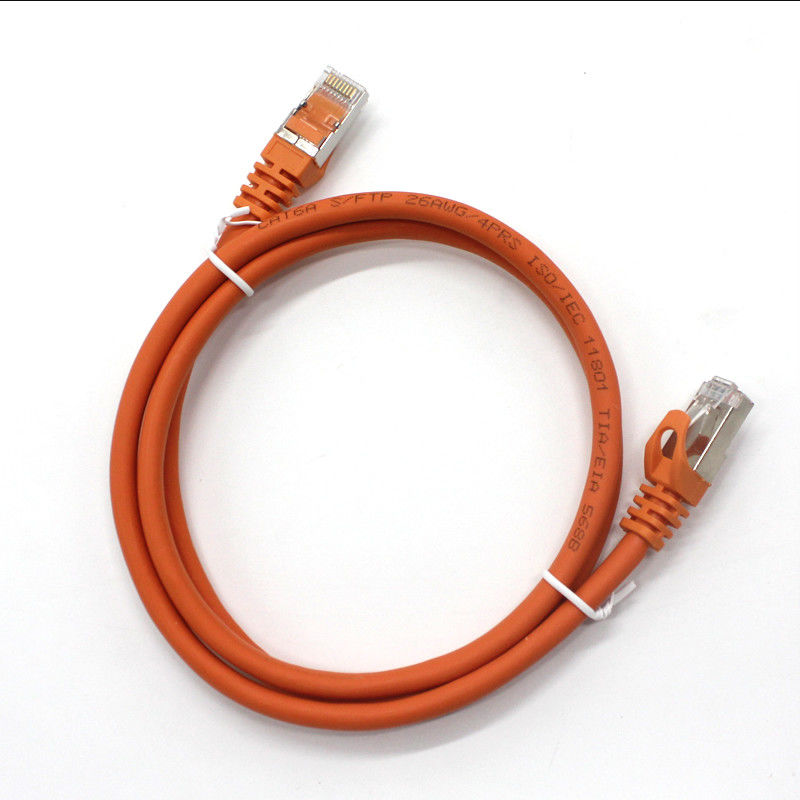

RJ45 Cat 7 Ethernet Cable

RJ45 Cat 7 Ethernet Cable
RJ45 Cat 7 Ethernet Cable RJ45 Cat 7 Ethernet Cable

Large Image :  RJ45 Cat 7 Ethernet Cable

Product Details:
Place of Origin: Guangzhou,China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: ETL/ CE/ UL/ ANATEL/ RoHS
Model Number: CAT7
Payment & Shipping Terms:
Minimum Order Quantity: 5000 Pcs
Price: Negotiation
Packaging Details: 400 pcs/box
Delivery Time: 15-20 Work Day
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 6000 Boxes/Day

RJ45 Cat 7 Ethernet Cable

Description
Model Number:: CAT7 Patch Cord Color:: 9 Colors Available
Fire Rating:: CMX/ CMG/ CM/ CMR/ CMP Connector:: Gold-Plated
Material:: BC/CCA Type: Cat 7
Length: 1m/2m/3m/5m/10m/15m/20m/30m/40m/50m Jacket: PVC/LSZH
High Light:

5m cat 7 ethernet cable

,

rj45 cat 7 ethernet cable

,

20m cat 7 ethernet cable

Factory Price high quality high speed CAT5 /CAT 6/CAT 7 Network Flat rj45 Patch Cord RJ45 2M/3M/5M



Product Description

Features
Name: High Quality Flat Ethernet Cable Lan Cat5e/cat6 Patch Cord
TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation
Wiring Scheme
ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)
Cordage
Construction: 4 pairs, 7 strandsed oxyge-free copper,24 AWG, UTP CAT.5e
Pair Identification: Pair1= Blue/White Pair2= Orange/White
Pair 3= Green/White Pair4= Brown/White
Outer Cable Diameter: 5.5mm ± 0.2 mm
Outer Jacket: PVC/LSZH Jacket
Plug
Type:Unshielded RJ45 8P8C Modular Plug
Housing: UL listed 94V-0/1/2 flame retardant polycarbonate
IDC blades: phosphor bronze, gold plating over 100 μin of nickel in contact area
MECHANICAL
Retention: 50 N (11 lbf) for 60±5 s Installation Temperature: 0°C to +60°C
Mating cycle life: min 750 cycles Operating temperature: -20°C to +60°C
Tensile strength: ≥ 20 N per wire Minimum bend radius: 4 outer cable diameters
Conductor Bare solid copper conductor
Insulation Colour-coded PE insulation
Spline HDPE
Shield PET/AL
Drain wire 0.5TC
Rip cord Optional
Jacket Lead free PVC or LSOH jacket
Flammability grade CMX,CM,CMG,CMR
Rated temperature 60°C,75°C
Reference standard UL1581,UL444,ANSI/TIA-568-C.2






RJ45 Cat 7 Ethernet Cable 0RJ45 Cat 7 Ethernet Cable 1

FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well
.
