24 AWG Network Cable Assembly RJ45 Through Connector

24 AWG Network Cable Assembly RJ45 Through Connector
24 AWG Network Cable Assembly RJ45 Through Connector 24 AWG Network Cable Assembly RJ45 Through Connector 24 AWG Network Cable Assembly RJ45 Through Connector 24 AWG Network Cable Assembly RJ45 Through Connector 24 AWG Network Cable Assembly RJ45 Through Connector 24 AWG Network Cable Assembly RJ45 Through Connector

Large Image :  24 AWG Network Cable Assembly RJ45 Through Connector

Product Details:
Place of Origin: China
Brand Name: OEM / ODM / YUEXIANKE
Certification: CE / ROHS / UL / ISO / ETL / Anatel
Model Number: RJ45
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pcs
Price: Negotiate
Packaging Details: 100 Pcs Per PE Bag
Delivery Time: 7-10 Working Day
Payment Terms: L/C, T/T,
Supply Ability: 100000 Pcs Per Day

24 AWG Network Cable Assembly RJ45 Through Connector

Description
Pins:: 8P, 8P Application:: Network, 23/24AWG Network Cable
Prongs:: 2 Or 3 Gender:: Male
Number Of Cores:: Eight Core Gold Plating::
MOQ:: 1000Pcs Max Insulated Wire OD:: Cat5e:1.0mm; Cat6: 1.1mm Or 1.2mm
High Light:

24 AWG Network Cable Assembly

,

Anatel Network Cable Assembly

,

Eight Core RJ45 Through Connector

Network RJ45 Through Connector Gold Plated RJ45 Easy Plug RJ45 Connector

Product Description

RJ45 Connector also named RJ45 pass though connector. It allow the wires to be inserted through the connector and out the front, this design is easily verify the proper wiring order(ANSI/TIA/EIA), speeding up the terminations and reducing scraps and waste. The EZ RJ45 Passthrough connectors allows you make ethernet cables in custom lengths. it is a cost effective solution for field construction of CCTV, Security Cameras, Routers, Switches.



Featres

* 1mm hole diameter for 24AWG cat5e cable, 1.1mm hole diameter for 23AWG cat6 cable.
* Works with solid or stranded cable.
* 1-50 μ gold plated contacts.
* 2 or 3 prong makes the contact more stable.
* Meets ANSI/EIA/TIA/TAA specifications.
* RoHS / FCC compliant.
* Copper Metal Shileded.
* Color: Clear/Transparent.





Specification

Products CAT5e / Cat6 connector
Type UTP
Conductors/Position 8/8
Prongs 2 or 3
Gold plating thickness 0μ, 1μ, 3μ, 6μ, 15μ,30μ, 50μ optional.

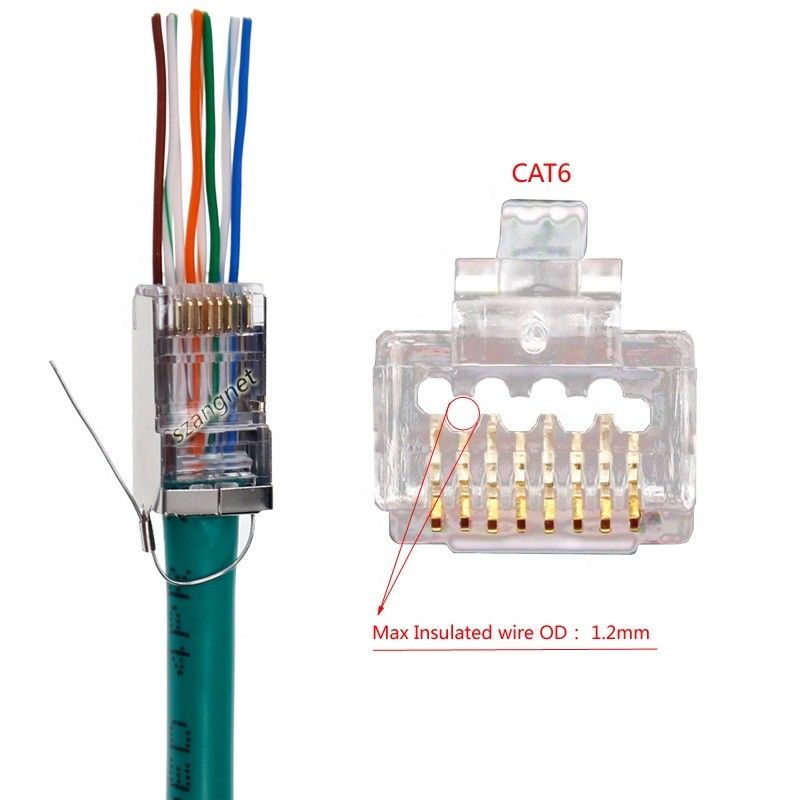

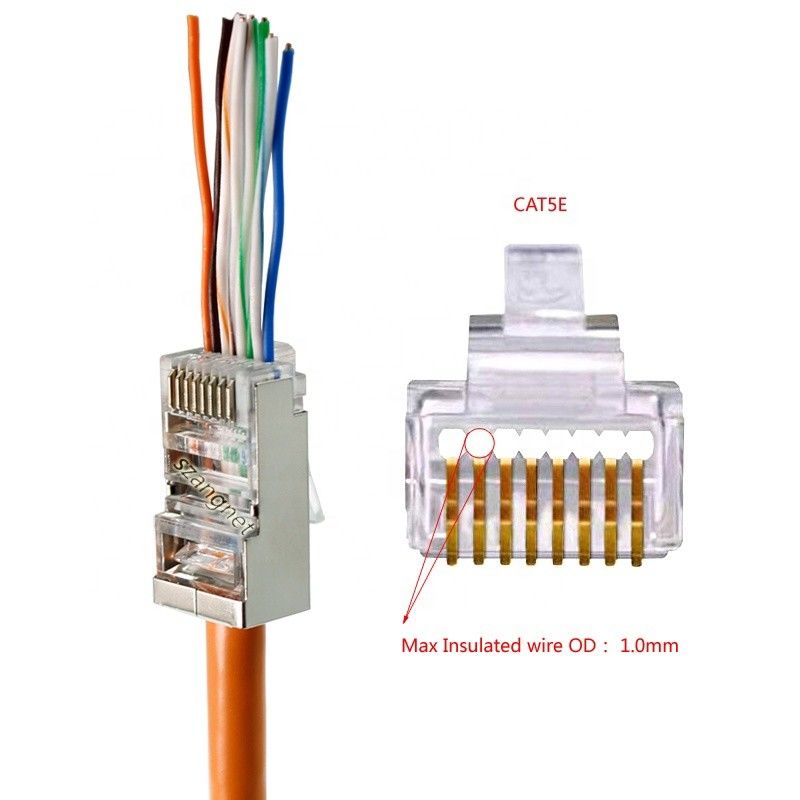

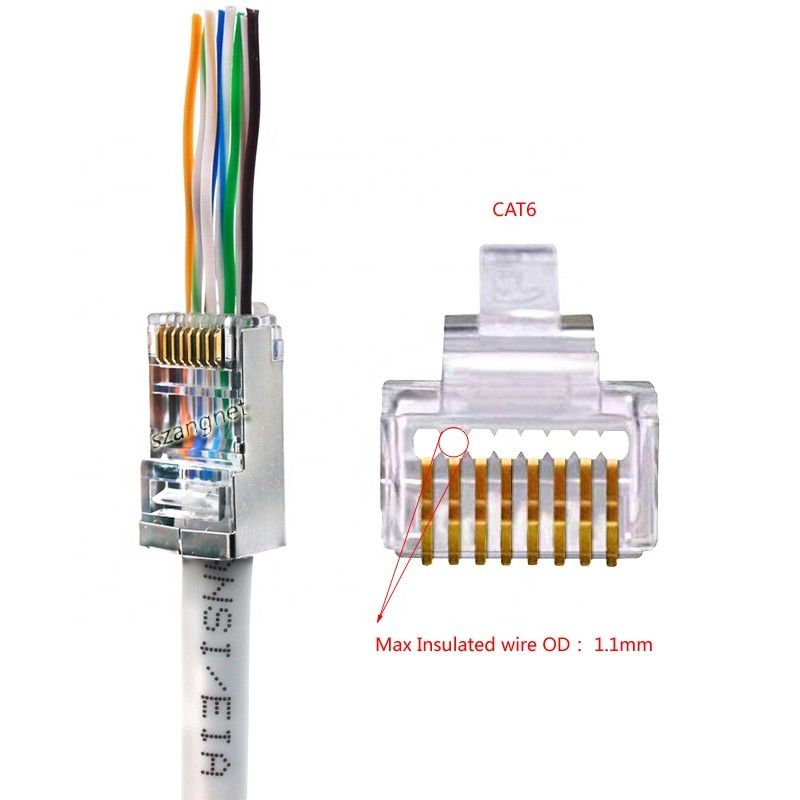

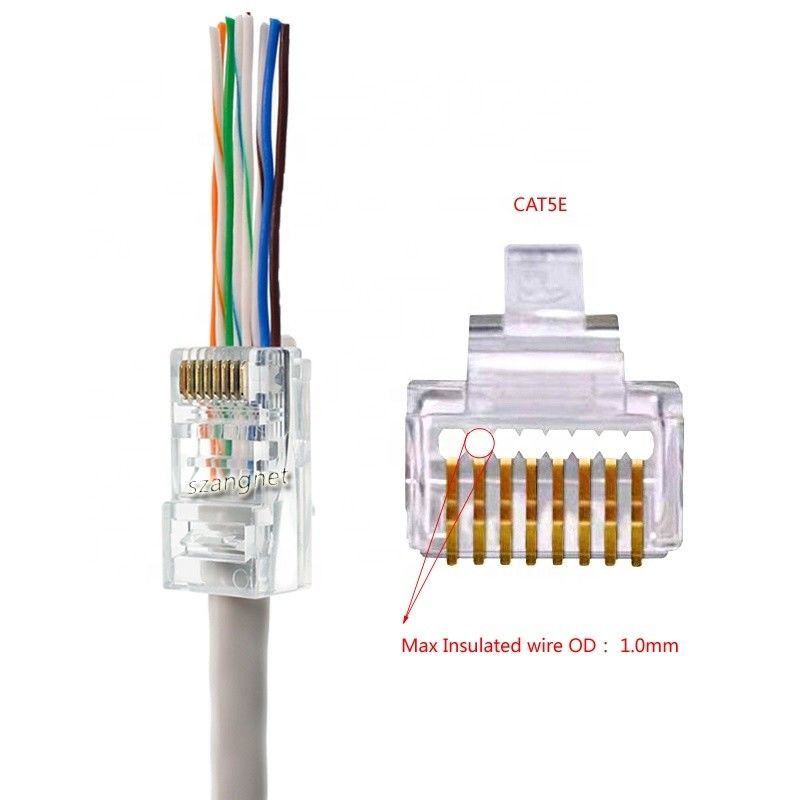

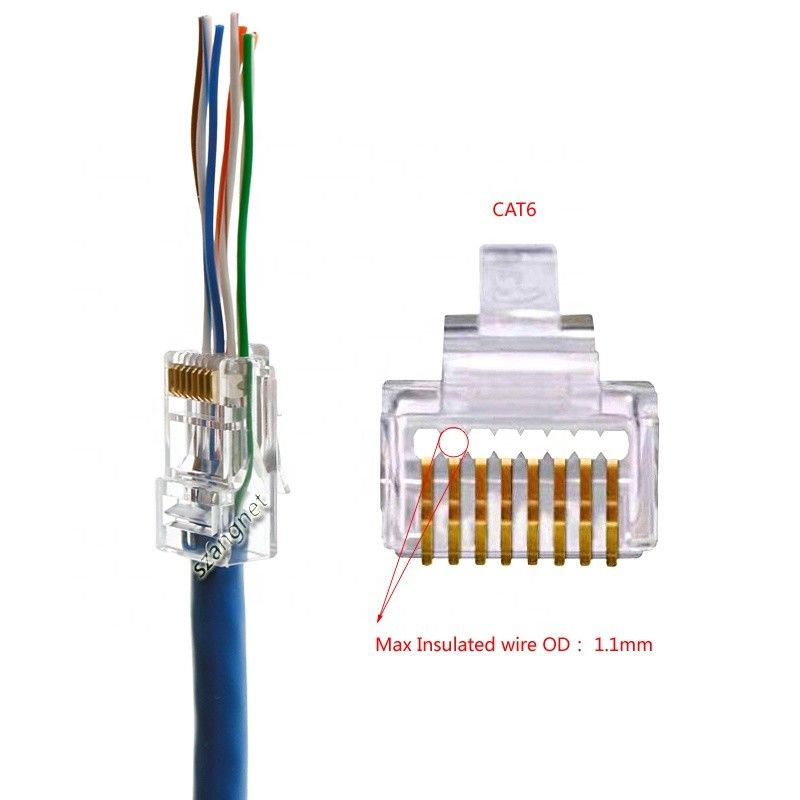

Max Insulated wire OD Cat5e: 1.0mm; Cat6: 1.1mm or 1.2mm
Operating Temperation -20°C to +75°C
Application Solid or stranded 23/24AWG network cable







Application

CCTV, Security Cameras, Routers, Switches, Printers, and Servers, etc.

24 AWG Network Cable Assembly RJ45 Through Connector 024 AWG Network Cable Assembly RJ45 Through Connector 124 AWG Network Cable Assembly RJ45 Through Connector 2

FAQ



Q1: Are your trading company or manufacture ?
A: We are factory verified by SGS



Q2: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.



Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.



Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.



Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.



Q6: What's your payment terms ?
A: We accept T/T, , Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
