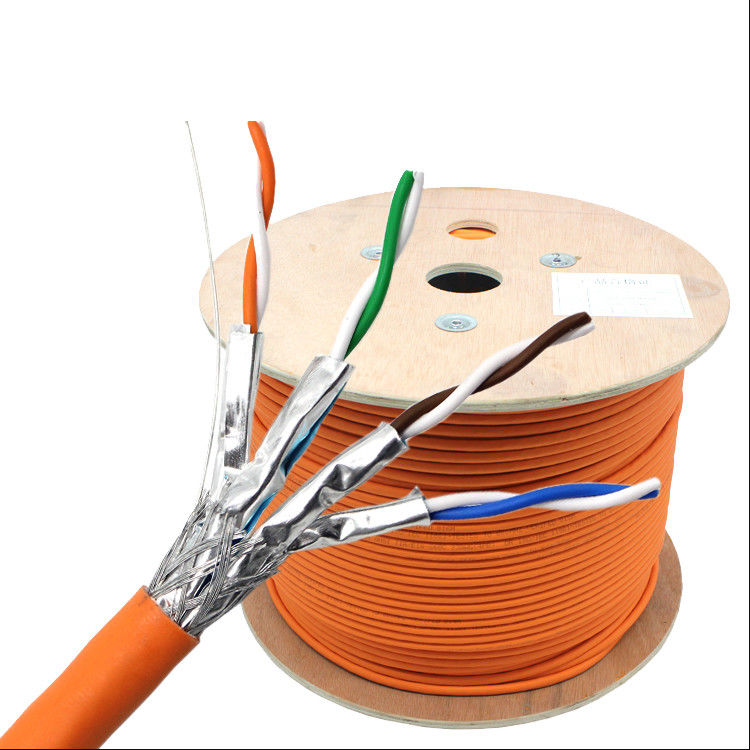

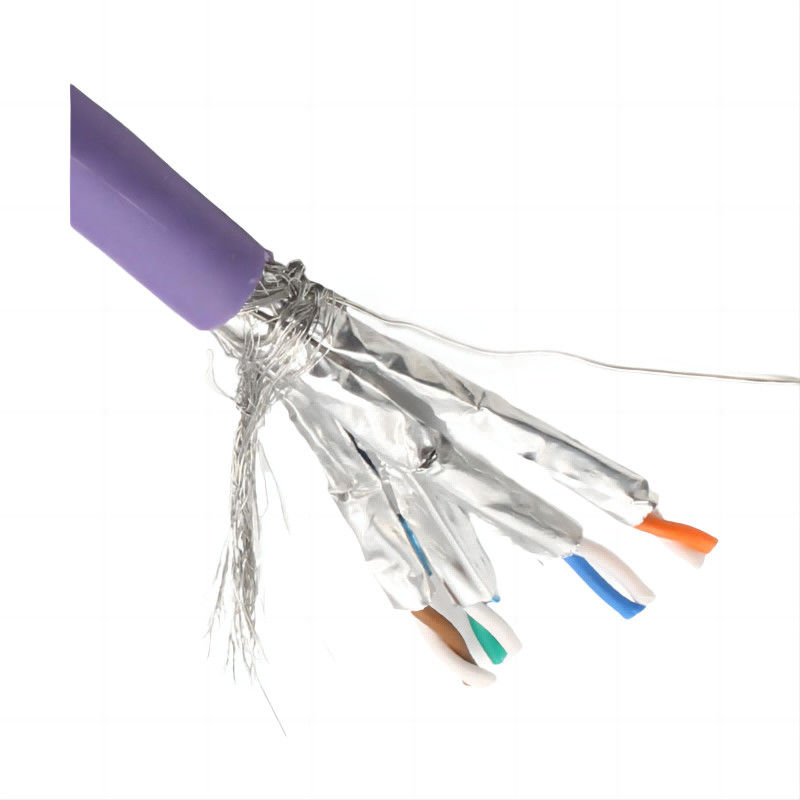

Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed

Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed
Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed
Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed

Large Image :  Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed

Product Details:
Place of Origin: China
Brand Name: JINGCHANG
Certification: CE/Unilever/ROSH/ANATEL/ISO/CPR/ETL
Model Number: CAT7
Payment & Shipping Terms:
Minimum Order Quantity: 15000 meter
Price: Negotiation
Packaging Details: 305m/box
Delivery Time: 3-7 work days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 6000 box per day

Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed

Description
ANSI/TIA Category: CAT7 Cable Type: S/FTP (shielded)
Conductor Type, Singles: Solid Conductors, Quantity: 8
Pairs, Quantity: 4 Conductor Gauge, Singles: 23 AWG
Product Type: Twisted Pair Cable Conductor Material: Bare Copper
Insulation Material: Polyolefin Jacket Material: Low Smoke Zero Halogen (LSZH)
Shield (Tape) Material: Aluminum/Polyester Shield: Al Foil+braiding
Cable Length: 305m|1000ft Transmission Standards: ANSI/TIA-568.2-D | CENELEC EN 50288-4-1 | ISO/IEC 11801 Class F

Product Description:

CAT7 LAN Cable: High-Speed and Reliable Ethernet Connection

CAT7 LAN Cable is a high-performance Ethernet cable designed to provide a fast and reliable connection for your network needs. With its advanced technology and top-of-the-line materials, it offers unparalleled performance and efficiency for your data transmission requirements.

Product Overview

The CAT7 LAN Cable is a type of Ethernet cable that is specifically designed to meet the high demands of modern networks. It has a bandwidth of 600 to 1000MHz, making it capable of handling large amounts of data at high speeds. This makes it ideal for use in applications such as Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet.

With a cable length of 1000 feet, the CAT7 LAN Cable provides enough length to cover a wide range of network setups. It is perfect for use in both commercial and residential settings, ensuring that you have a stable and efficient connection wherever you are.

Key Features
High Bandwidth

The CAT7 LAN Cable boasts a bandwidth of 600 to 1000MHz, which is significantly higher than its predecessors. This allows for faster data transfer speeds and better overall performance, making it perfect for high-demand applications.

Wide Application

Features:

  • Product Name: Cat 7 Ethernet Patch Cable
  • Conductor Material: Copper
  • Cable Length: 1000 Foot /305m
  • Number Of Conductors: 8
  • Jacket Material: LSZH
  • High-speed Performance
  • Supports up to 10 Gigabit Ethernet
  • Backward compatible with Cat 6 and Cat 5e cables
  • Designed for use in home, office, or data center networks
  • Provides reliable and stable internet connection
  • Enhanced signal quality with minimal interference
  • Flexible and durable construction for long-lasting use
  • Easy and hassle-free installation
  • Compatible with a wide range of devices such as computers, routers, switches, and more
  • Perfect for high-bandwidth applications such as gaming, streaming, and video conferencing
  • Meets industry standards for safety and performance
  • High-quality materials for maximum data transfer speed and accuracy
  • Available in various lengths for different network setup needs
  • Backed by a warranty for peace of mind


Technical Parameters:

Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed 0Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed 1





Applications:

The CAT7 LAN Cable is ideal for use in various applications, including:

Cat 7 Lan Cable

The CAT7 LAN Cable is specifically designed for Cat 7 networks, providing high-speed and reliable connectivity for data transfer and communication.

Ethernet Lan Cables

This cable is also suitable for Ethernet networks, providing a stable and fast connection for devices such as computers, routers, and switches.

Network Cables

The CAT7 LAN Cable is perfect for use in network setups, including LANs, WANs, and other types of networks, providing a secure and efficient way to transfer data and information.

With its high performance and durability, this CAT7 LAN Cable is a versatile and reliable solution for various networking needs.



Cat 7 Ethernet shielded cable with LSZH Sheath Material, 10Gbps transmission Speed 2





Packing and Shipping:

The CAT7 LAN cable is a high-quality product that is carefully packaged and shipped to ensure its safety and optimal performance during transportation. The packaging and shipping process is designed to protect the cable from any potential damage and to provide convenience for our customers. Below are the details of the packaging and shipping procedures for the CAT7 LAN cable:


  • The CAT7 LAN cable is wrapped in a protective layer of plastic to prevent any damage to the cable during transportation.
  • It is then placed in a strong and durable cardboard box to provide additional protection.
  • The box is sealed with tape to ensure that the cable stays in place and does not move around during delivery.
  • Inside the box, there is also a layer of cushioning material to absorb any shock or impact that may occur during shipping.
  • Finally, the box is labeled with the product name, specifications, and any necessary handling instructions.


Once the CAT7 LAN cable is packaged, it is ready to be shipped to our customers.

We offer various shipping options to suit our customers' needs, including standard and express delivery. Our team carefully handles the package and ensures that it is delivered in a timely and secure manner. We also provide a tracking number for our customers to track their shipment and ensure its safe arrival.

At CAT7, we strive to provide the best packaging and shipping services to ensure the satisfaction of our customers. We take great care in delivering our products to you in perfect condition, and we are committed to making your shopping experience with us a pleasant one.



FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is JINGCHANG.

  • Q: What is the model number of this product?
  • A: The model number of this product is CAT7.

  • Q: Where is this product manufactured?
  • A: This product is manufactured in China.

  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 15000 meters.

  • Q: Is the price of this product negotiable?
  • A: Yes, the price of this product is negotiable.

  • Q: How is this product packaged?
  • A: This product is packaged in 305m/drum.

  • Q: What is the delivery time for this product?
  • A: The delivery time for this product is 7-15 work days.

  • Q: What are the accepted payment terms for this product?
  • A: Usually ,we accept T/T,and if you have other payment requirements,you can negotiate with us.

  • Q: What is the supply ability for this product?
  • A: The supply ability for this product is 6000 boxes per day.
