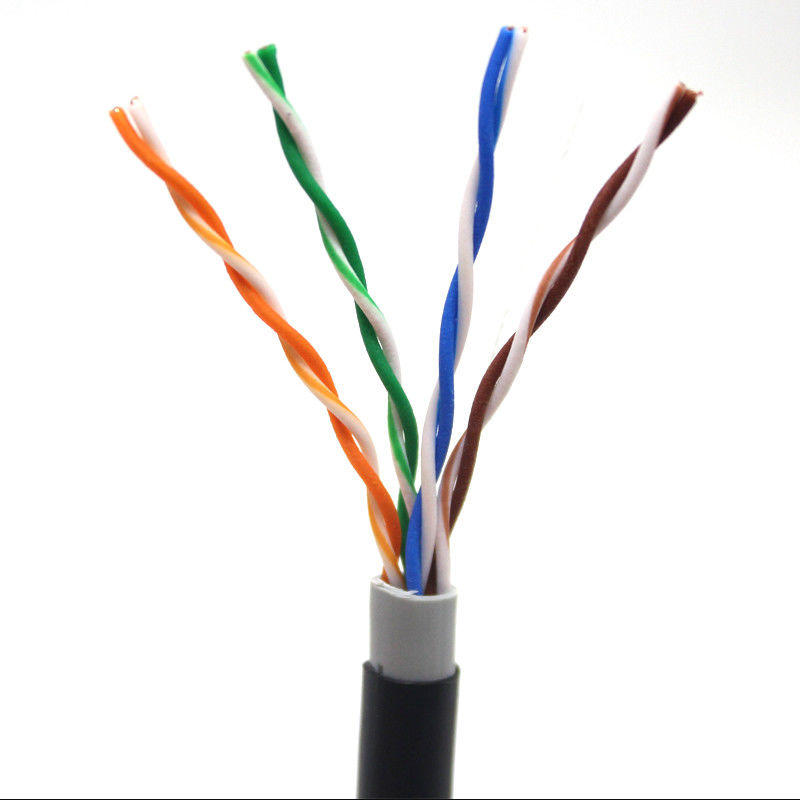

305m UTP Double Jacket Outdoor External Cat5e LAN Cable

305m UTP Double Jacket Outdoor External Cat5e LAN Cable
305m UTP Double Jacket Outdoor External Cat5e LAN Cable 305m UTP Double Jacket Outdoor External Cat5e LAN Cable

Large Image :  305m UTP Double Jacket Outdoor External Cat5e LAN Cable

Product Details:
Place of Origin: CHINA
Brand Name: OEM/ODM/YUEXIANKE
Certification: Unilever/ROSH/CE/ANATEL/ISO/CPR/ETL
Model Number: Cat5E
Payment & Shipping Terms:
Minimum Order Quantity: 15000M
Price: Negotiation
Packaging Details: 305m/Box
Delivery Time: 7-12 work days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 6000box/day

305m UTP Double Jacket Outdoor External Cat5e LAN Cable

Description
Model Number:: CAT5E UTP 24AWG 0.5mm CCA PVC+PE Conductor: 0.5
Standard Bandwidth:: 100MHz Structure: 4P Twisted Pair
Jacket: PE/HDPE Conductor Material: Bare Copper
Conductor Diameter: 24AWG Length:: 1000ft (305m)
High Light:

ETL certified 305m Cat5e LAN Cable

,

ETL certified External Cat5e LAN Cable

,

Cat5E 305m external shielded cat5e cable

305M 1000ft outdoor external 24awg 23awg 4 pair utp double jacket cat5e cat6 lan cable

Advantages

  1. Humanized upgrade design

    Newly press the jacket to reduce the force of the thumb,soft touch, fine care of your thumb

  2. High quality green PVC outside

    Outside the use of high-quality environmentally friendly PVCmaterials, wear-resistant, anti-oil, effectively enhance the service life of wire, line soft and hard moderate, easy wiring

  3. Fine workmanship

    Precision mechanical suppression 8P8C crystal head, line body and crystal head injection molding, so that the core and contact closely fit, solid pull-pull, plus humanized shrapnel protection design, easy plug operation at the same time,effectively prevent the transparent shrapnel damage

Specification parameter :
Product name
Cat5E UTP lan cable
Cable Type
Cat5e
Shielding Type
UTP
Jacket Material
PVC+PE
Cable Length
1000ft (305m)
Standard Bandwidth
100MHz
Data Rate Support
10base-T4,100base-TX
Wire Gauge
24AWG
Conductor Type
Bare Copper
Conductor Diameter
0.500 ± 0.02mm
Outer Jacket Diameter
5.20 ± 0.10mm
Insulation Diameter
0.91 ± 0.01mm
Cable Color
Blue, white or customized
PVC Flame Retardance
Accordance with IEC 60332-1
Standard
ANSI/TIA/EIA 568B & ISO/IEC 11801
Operating Temperature
0 to 50°C(32 to 122°F)
Installation Temperature
-30 to 50°C (-22 to 122°F)




Technical differences
As the category number gets higher, so does the speed and Mhz of the wire. This is not a coincidence, because each category brings more stringent testing for eliminating crosstalk (XT) and adding isolation between the wires.

This does not mean your experiences have been the same. Physically you can use Cat-5 cable for 1 Gb speeds, and I have personally used cable longer than 100 meters, but because the standard has not been tested for it, you'll probably have mixed results. Just because you have Cat-6 cable, doesn't mean you have 1 Gb network speeds either. Every connection in your network needs to support the 1 Gb speed and in some cases, the connection will need to be told in software to use the available speed.

Category 5 cable was revised, and mostly replaced with, Category 5 Enhanced (Cat-5e) cable which did not change anything physically in the cable, but instead applied more stringent testing standards for crosstalk.

Category 6 was revised with Augmented Category 6 (Cat-6a) which provided testing for 500 Mhz communication (compared to Cat-6's 250 Mhz). The higher communication frequency eliminated alien crosstalk (AXT) which allows for longer range at 10 Gb/s .



Application
Mainly used in the wiring system betweenwork area correspondence leading-out terminal and distribution wiring frames connection.As well as used in the housing synthesis wiring system between user correspondence leading out terminal and patch pannel.

305m UTP Double Jacket Outdoor External Cat5e LAN Cable 0305m UTP Double Jacket Outdoor External Cat5e LAN Cable 1
FAQ
Q1: Are you a factory or trading company?
A:We are a factory specializing in manufacturing coaxial cable,lan cable,speaker cable,alarm cable etc,.And as everyone knows,we are faithful and professional.

Q2: Can I get samples to test before I place an order?
A:Yes ,samples are available,and the samples are refundable after you place an order.

Q3: How do you factory think about quality control?
A: Quality is the most important,and that's why the raw material we choose are of high quality.

Q4:Do you accept OEM order and how long will you shipping after place an order?
A:We can manufacture according to customer's request and usually we can deliver goods 15-20 days after we receive your deposit.

Q5:What is your payment terms?
A:Usually ,we accept T/T,and if you have other payment requirements,you can negotiate with us.
