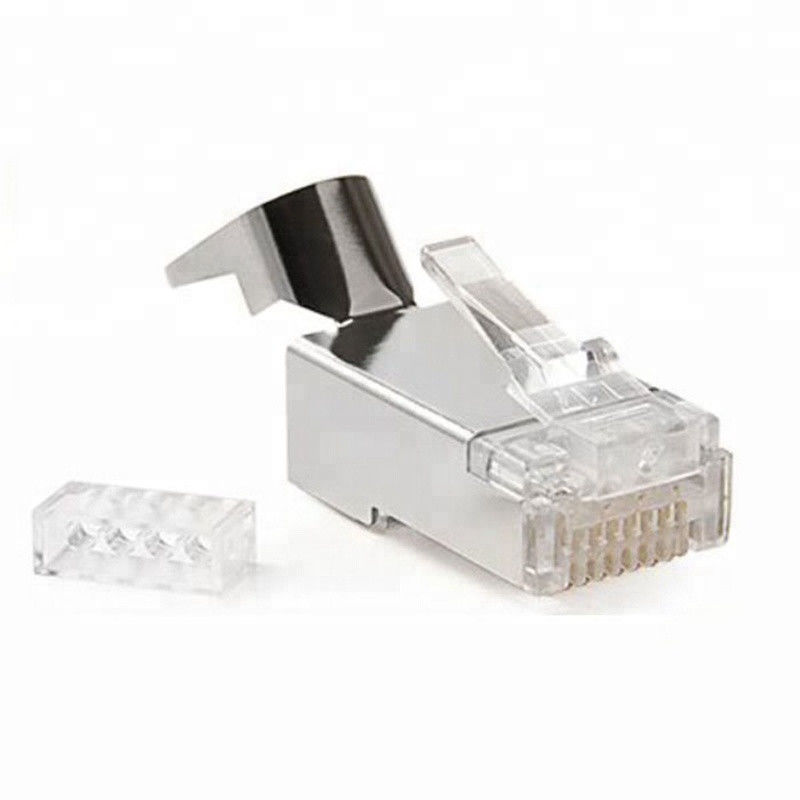

Golden Plated 8P8C Crystal Head Shielded 3U 50U Cat7 Rj45 Connector

Golden Plated 8P8C Crystal Head Shielded 3U 50U Cat7 Rj45 Connector
Golden Plated 8P8C Crystal Head Shielded 3U 50U Cat7 Rj45 Connector Golden Plated 8P8C Crystal Head Shielded 3U 50U Cat7 Rj45 Connector

Large Image :  Golden Plated 8P8C Crystal Head Shielded 3U 50U Cat7 Rj45 Connector

Product Details:
Place of Origin: China
Brand Name: OEM / ODM / YUEXIANKE
Certification: CE / ROHS / UL / ISO / ETL / Anatel
Model Number: RJ45 Male
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pcs
Price: Negotiate
Packaging Details: 100 Pcs Per PE Bag
Delivery Time: 7-10 Working Day
Payment Terms: L/C, T/T,
Supply Ability: 100000 Pcs Per Day

Golden Plated 8P8C Crystal Head Shielded 3U 50U Cat7 Rj45 Connector

Description
Type: Rj45 Boots Category: Cat7
Color: Customerized Certification: ROHS
Service: OEM/ODM Custom Service Application:: NETWORK, Structure Cabling System
Product Name:: CAT7 RJ45 Connector Contact Material:: Phosorphor Bronze With Golden Plating
High Light:

50U Cat7 Rj45 Connector

,

3U cat7 rj45 connector

,

50U cat 7 rj45 plugs

High Quality 3u 50u Golden Plated 8P8C Crystal Head Shielded Modular Plug Cat 7 Cat7 Rj45 Connector



Specifications:
1). Transparent color

2). Meet or exceed the requirement in the cat5e T568A and T568B

3). Contacts are nickel plated, phosphor bronze with 1U, 3U, 6U….50U gold plated

4). Exclusive stagger conductors guide design reduces near end cross talk

6) Accept 22AWG, 23AWG, 24AWG, 26AWG solid with a insulation diameter of 0.64mm, 0.56mm, 0.50mm, 0.40mm



Electrical:

1) UL application:250vac,2a(max)

2) Dielectrical with standing voltage:500v AC

3)insulation resistance:35m ohm(max), after environmental testing

Mechanical:

1 )cable- to-plug tensile strength:20lbs(89n) (min.)

2)Durability: 750 matching cycles

3) temperature range:-40~60


Material and finish:

1) housing:polycarbonate(pc)UL94-v-0 or UL 94-v-2
2) contact blade: phosphor broze
3) Gold plating:copper with nickel,3-50u gold plating

Place of Origin: Guangdong China (Mainland) Brand Name: YUEXIANKE Model Number: modular plug
Type: RJ45 Application: Networking connection Gender: Female
Type:: Cat.5e UTP modular plug Spec.:: 8P8C, one part, without loading bar Gold plating thickness:: FU", 03U", 06U", 15U",...
Suitable for cable:: Cat5e UTP patch cable Testing:: Cat.5e Channel test by Fluke Suitable for cable type:: round cable
Packaging & Delivery
Packaging Detail: 1000pcs/bag with a sticker to mark specification or as required
Delivery Detail: 1-2weeks

Golden Plated 8P8C Crystal Head Shielded 3U 50U Cat7 Rj45 Connector 0Golden Plated 8P8C Crystal Head Shielded 3U 50U Cat7 Rj45 Connector 1
