Al Foil Pure Copper CCS RG59 2C Coaxial TV Cable , Coax Cable For Internet

Al Foil Pure Copper CCS RG59 2C Coaxial TV Cable , Coax Cable For Internet
Al Foil Pure Copper CCS RG59 2C Coaxial TV Cable , Coax Cable For Internet Al Foil Pure Copper CCS RG59 2C Coaxial TV Cable , Coax Cable For Internet

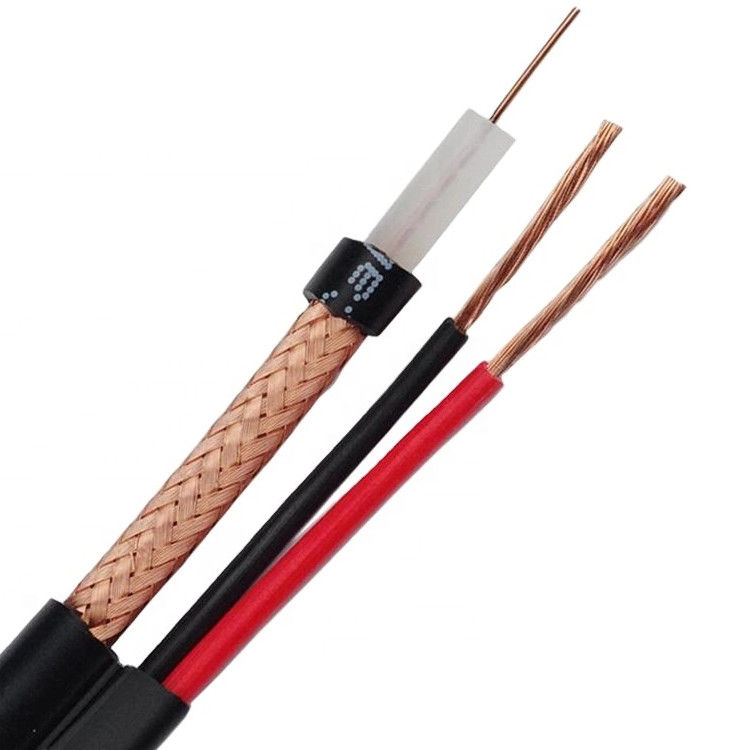

Large Image :  Al Foil Pure Copper CCS RG59 2C Coaxial TV Cable , Coax Cable For Internet

Product Details:
Place of Origin: Guangzhou,China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: CE/ RoHS/ ETL/ ISO
Model Number: RG59
Payment & Shipping Terms:
Minimum Order Quantity: 20000 Meters
Price: Negotiation
Packaging Details: 100 Meters/ Box
Delivery Time: 12-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 100000 Meters/ Day

Al Foil Pure Copper CCS RG59 2C Coaxial TV Cable , Coax Cable For Internet

Description
Conductor Material:: BC/CCS/CCA Conductor Size:: 0.81mm
Braiding:: Customized Insulation:: CCTV Camera Cables
Jacket:: PVC Name:: RG59 Coaxial Cable
Model Number:: CATV Satellite
High Light:

CCS Coaxial TV Cable

,

Rg59 Coaxial TV Cable

,

Rg59 coax cable for internet

Al Foil 0.81mm Pure Copper CCS Conductor Rg59 2c Cctv Cable With Power For Security System Communication Cables



Product structure

Conductor :Solid bare copper

Insulation: Solid PE

Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids

Jacket:polyvinyl chloride / FR-PVC

Electrical characteristics

Impedance:75±3OHM

Capacitance:66±3pF/m

Max attention: 20°C

Flammability grade: CMX, CM

Operating temperature: -25~70°C or -40~70°C

Insulation resistance: 5000MOHM/km

Reference GB/T14864-93 Standards.

Description for RG59 with power cable

Mainly used for the distribution and access of electronic communication equipment,

RF transmitter unit of communication system, building cabling and CATV;

the most striking features are broadband and high speed; currently,

also widely used in the multimedia transmission field; conforms to RG59.


Coaxial Cable With Power Cable
RG58 RG59 RG6 With Power Siamese
Power Cable: 2 Core
Conductor material: Bare Copper, CCA
Size: 2x10x0.15mm
2x10x0.18mm
2x15x0.15mm
2x15x0.18mm
Power Supply 12V and 24V

Coaxial Cable With Steel Messenger
RG6 With Steel, 1.0/1.2mm
RG11 with Steel 1.5mm



Product Description



Product Name
Coaxial Cable RG59 RG6 RG8 RG11
Conductor Material
Bare Copper, CCA, CCS(18% 21%)
Function
CCTV CATV HDTV Satellite
Package
100M 305M Wooden Durm, Plastic Drum. Easy Pull-Out Carton


Al Foil Pure Copper CCS RG59 2C Coaxial TV Cable , Coax Cable For Internet 0Al Foil Pure Copper CCS RG59 2C Coaxial TV Cable , Coax Cable For Internet 1
FAQ:

Q. How long is the warranty?

A. We offer 1-years-warranty


Q. How long is the delivery time?
A. 3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Q. Why do you choose us?
A. We are the leading manufacturer in CCTV Cables and Electronic Cables industry, we have more than 10 years experiences in this field.
Work with us, you will always get top quality with fair price.
