RG58 RG59 RG6 RG11 Coaxial TV Cable , TV Aerial Cable For CCTV CATV

RG58 RG59 RG6 RG11 Coaxial TV Cable , TV Aerial Cable For CCTV CATV
RG58 RG59 RG6 RG11 Coaxial TV Cable , TV Aerial Cable For CCTV CATV RG58 RG59 RG6 RG11 Coaxial TV Cable , TV Aerial Cable For CCTV CATV

Large Image :  RG58 RG59 RG6 RG11 Coaxial TV Cable , TV Aerial Cable For CCTV CATV

Product Details:
Place of Origin: Guangzhou,China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: CE/ RoHS/ ETL/ ISO
Model Number: RG58U
Payment & Shipping Terms:
Minimum Order Quantity: 20000 Meters
Price: Negotiation
Packaging Details: 100 Meters/ Box
Delivery Time: 12-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 100000 Meters/ Day

RG58 RG59 RG6 RG11 Coaxial TV Cable , TV Aerial Cable For CCTV CATV

Description
Conductor Material:: CCA/CCS/CU Conductor Size:: 0.8mm-1.02mm
Braiding:: Customized Insulation:: CCTV Camera Cables
Jacket:: PVC Name:: RG59 Coaxial Cable
Model Number:: CATV Satellite
High Light:

RG58 Coaxial TV Cable

,

RG11 Coaxial TV Cable

,

RG6 tv aerial cable

100M 200M 300M 500M RG58 Rg59 RG6 Rg11 Communication TV Coaxial Cable for CCTV CATV



RG59 Coaxial Cable
Coaxial cable is a type of copper cable specially built with a metal shield and other components engineered to block signal interference. It is primarily used by cable TV companies to connect their satellite antenna facilities to customer homes and businesses. It is also sometimes used by telephone companies to connect central offices to telephone poles near customers. Some homes and offices use coaxial cable, too, but its widespread use as an Ethernet connectivity medium in enterprises and data centers has been supplanted by the deployment of twisted pair cabling.

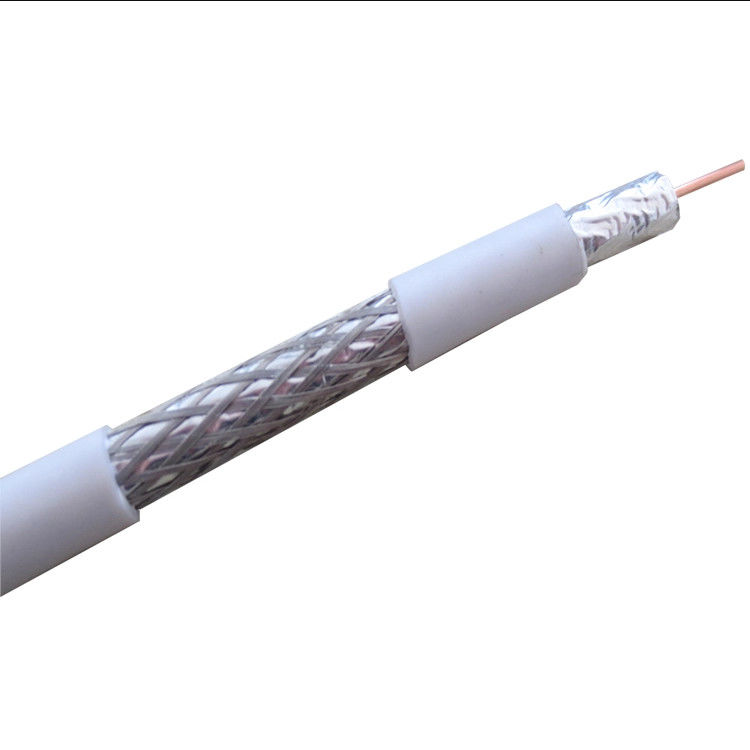

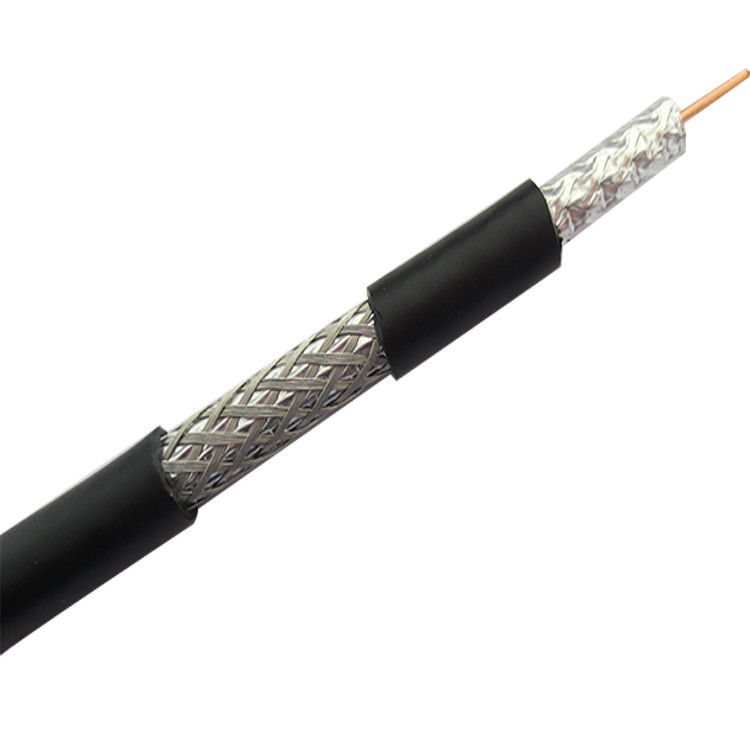

Product structure

Conductor :Solid bare copper

Insulation: Solid PE

Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids

Jacket:polyvinyl chloride / FR-PVC

Electrical characteristics

Impedance:75±3OHM

Capacitance:66±3pF/m

Max attention: 20°C

Flammability grade: CMX, CM

Operating temperature: -25~70°C or -40~70°C

Insulation resistance: 5000MOHM/km

Reference GB/T14864-93 Standards.

Description for RG58U with power cable

Mainly used for the distribution and access of electronic communication equipment,

RF transmitter unit of communication system, building cabling and CATV;

the most striking features are broadband and high speed; currently,

also widely used in the multimedia transmission field; conforms to RG58U.



Product Description

Product name
RG59 Coaxial Cable
Center Conductor Material
CCS
Conductor Diameter
0.8mm-1.02mm
Insulation
Foam PE
Insulation Diameter
4.7mm
First Shield
AL Foil
Second Shield
AL Braid
Braiding Coverage
40%-95% Al Braid Coverage
Jacket Material
PVC,PE,LSZH
Application
TV or Satellite Antenna
Sparker Test
4000VAC
Impedance
75+3 Ohm
Return Loss
20dB min (5-2300MHz)


RG58 RG59 RG6 RG11 Coaxial TV Cable , TV Aerial Cable For CCTV CATV 0RG58 RG59 RG6 RG11 Coaxial TV Cable , TV Aerial Cable For CCTV CATV 1

FAQ:

Q. How long is the warranty?

A. We offer 1-years-warranty


Q. How long is the delivery time?
A. 3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Q. Why do you choose us?
A. We are the leading manufacturer in CCTV Cables and Electronic Cables industry, we have more than 10 years experiences in this field.
Work with us, you will always get top quality with fair price.
