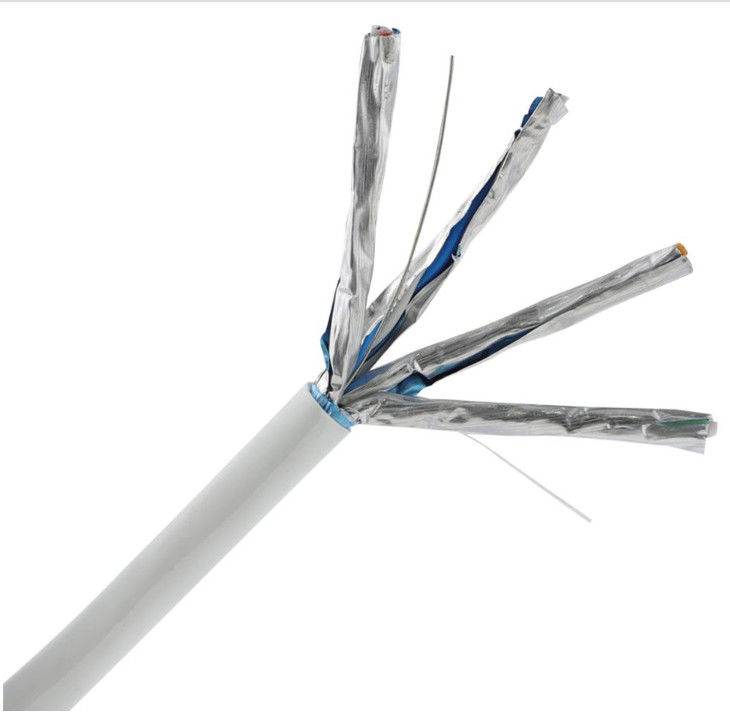

Double Screen 4pair 23AWG 550Mhz RJ45 Cat6A LAN Cable FTP UTP

Double Screen 4pair 23AWG 550Mhz RJ45 Cat6A LAN Cable FTP UTP
Double Screen 4pair 23AWG 550Mhz RJ45 Cat6A LAN Cable FTP UTP Double Screen 4pair 23AWG 550Mhz RJ45 Cat6A LAN Cable FTP UTP

Large Image :  Double Screen 4pair 23AWG 550Mhz RJ45 Cat6A LAN Cable FTP UTP

Product Details:
Place of Origin: China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: UL/ CE/ ETL/ ROHS/ ANATEL
Model Number: CAT6 FTP
Payment & Shipping Terms:
Minimum Order Quantity: 50 Boxes
Price: Negotiation
Packaging Details: 305 meter/drum
Delivery Time: 12-15 work days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 3000 Boxes/Day

Double Screen 4pair 23AWG 550Mhz RJ45 Cat6A LAN Cable FTP UTP

Description
Wire Material:: 0.57mm Bare Copper Insulation:: Foamed PE
Shiled:: Al Foil Application:: Local Communication Cable, LAN Cable
Color:: Customized Sheath Material:: LSZH
Transport Length:: 1000ft (305m)
High Light:

550Mhz Cat6A LAN Cable

,

23awg Cat6A LAN Cable

,

23awg cable ethernet cat 6 utp

Customized 4pair 23awg 550Mhz Double Screen Internet Cable RJ45 Cable FFTP Cat 6a SFTP CAT6A F/UTP CAT6A



Cable Overview



Material Instruction
1. 23AWG Soft Plain Copper.
2. Eco-friendly,pollution-free and new materials selected.Promise new material only.
3. Insulation: Foam PE.
4. Eco-friendly PVC Jacket or LSZH Jacket , high-temperature resistance,long working life.



Physical Electrical Characteristics

Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Support 10-Gigabit Ethernet netword transmission requirements.



DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 160pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-600MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -50~+70°C;
Permitted bend radius: Over 8 times diameter of the cable.



Applications
155Mbps ATM
622 Mbps ATM
1000Base-T
10Gbase-T

Cable Specification



Item Name FFTP CAT6A Lan Cable
TYPE Cat6A
Construction FFTP
Conductor 23AWG Solid Copper
Number of Conductors 8
Insulation Material Foam PE
Drain Wire 23AWG
Shielding Double Aluminum Foil
Application Lan cable
Jacket LSZH
Operating temperature -20° C - +70 ° C




Double Screen 4pair 23AWG 550Mhz RJ45 Cat6A LAN Cable FTP UTP 0Double Screen 4pair 23AWG 550Mhz RJ45 Cat6A LAN Cable FTP UTP 1

FAQ



Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well.
