Product Details:
|
| Key Words:: | Fiber Cable | Jacket Material:: | LSZH HDPE |
|---|---|---|---|
| Application:: | Outdoor Overhead | Fiber Type:: | G657A1 |
| Product Name:: | Optic Fiber Cable | Certification:: | CE/ROHS/ISO9001 |

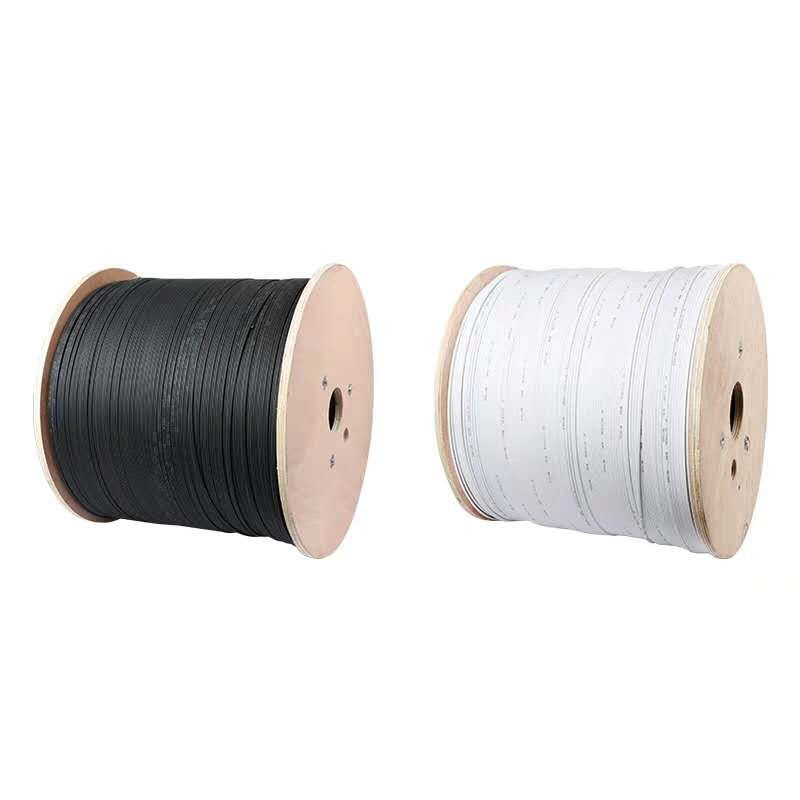

| Color: | Black/White/Customized Color | Messenger Wire:: | Steel Or FRP |
| High Light: | G652D 2 Core FTTH Drop Cable,G657A 2 Core FTTH Drop Cable,G657A fiber optic ethernet cable |
||

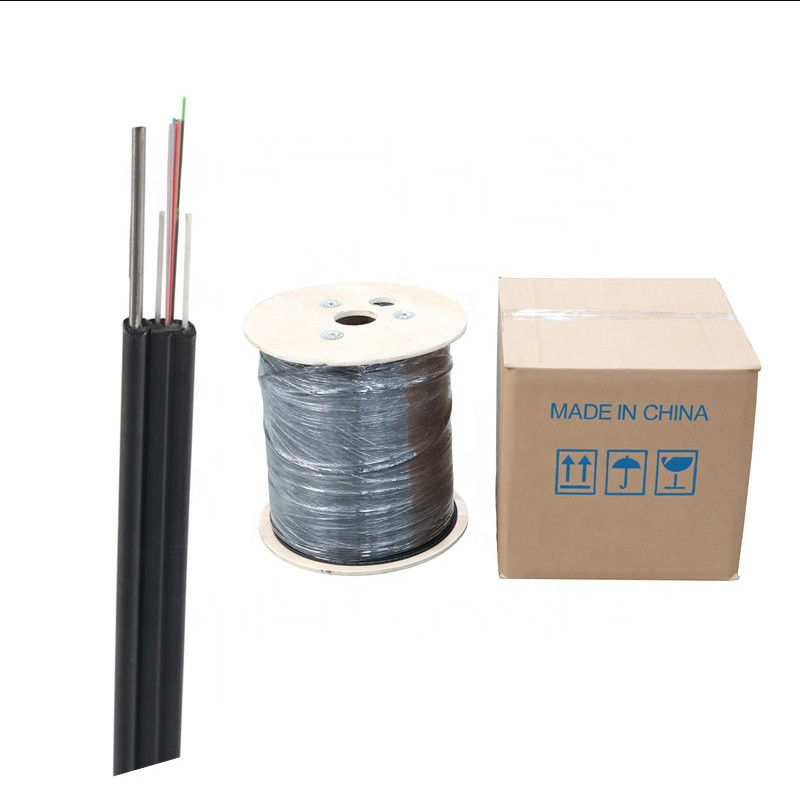

LSZH GJYFXCH GJYXCH G657A G652D Tight Buffer 1 Core 2 Core FTTH Drop Cable / 2 Core Fiber Optic Cable
Product Construction
Fiber:
250µm colorfiber
Fiberglass reinforced plastic (FRP) or Steel Wire.
Self-supported Member:
Steel Wire
Outer Jacket:
UV and Flame resistant LSZH
Features
Compact, soft, flexible, easyto install.
Applications
Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
Structural Parameter
| Model No. | Count |
Cable Size (mm) |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
| Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical value | MAX | Typical value | MAX | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃
FAQ
1.What is your MOQ?
Could be coordinated if you have detail requirements.
