GJFJV Turquoise Sheath Tight Buffered Indoor 0M3-150 Multimode Fiber Cable

GJFJV Turquoise Sheath Tight Buffered Indoor 0M3-150 Multimode Fiber Cable

0M3-150 Multimode Fiber Cable

GJFJV multimode fiber cable

0M3-150 indoor fiber cable

Place of Origin:

China

Brand Name:

OEM/ ODM/ YUEXIANKE

Certification:

UL/ CE/ ETL/ ROHS/ ANATEL

Model Number:

GJFJV

Contact Us
Request A Quote
GJFJV Turquoise Sheath Tight Buffered Indoor 0M3-150 Multimode Fiber Cable
GJFJV Turquoise Sheath Tight Buffered Indoor 0M3-150 Multimode Fiber Cable GJFJV Turquoise Sheath Tight Buffered Indoor 0M3-150 Multimode Fiber Cable
Product Details
Product Name::
Optic Fiber Cable
Jacket Material::
LSZH
Multi-Mode Fiber::
OM3-300
Color::
Aqua
Certification::
CE/ROHS/ISO9001
Color:
Black/White/Customized Color
Keywords::
Indoor Cable
Strengthen Member:
FRP Or Steel 0.4mm/0.45mm/0.5mm
High Light:

0M3-150 Multimode Fiber Cable

,

GJFJV multimode fiber cable

,

0M3-150 indoor fiber cable

Payment & Shipping Terms
Minimum Order Quantity
10000 meters
Price
Negotiation
Packaging Details
1000 Meters
Delivery Time
3-7Work Day
Payment Terms
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability
100000 Meters/Day
RELATED PRODUCTS
Good price G657A Fiber Optical Cable online

G657A Fiber Optical Cable

Get Best Price
Good price 2B6A2 2 Core Fiber Cable online

2B6A2 2 Core Fiber Cable

Get Best Price
Good price G652D 3Km / Drum ADSS Fiber Optic Cable 144 Core 9.5mm Diameter online Video

G652D 3Km / Drum ADSS Fiber Optic Cable 144 Core 9.5mm Diameter

Get Best Price
Good price Singlemode Armoured Indoor Fiber Optic Cable 12 Strand G657A2 0.9mm online Video

Singlemode Armoured Indoor Fiber Optic Cable 12 Strand G657A2 0.9mm

Get Best Price
Contact Us
+86 18925126499
gzjingchang@126.com
Contact Now
Product Description

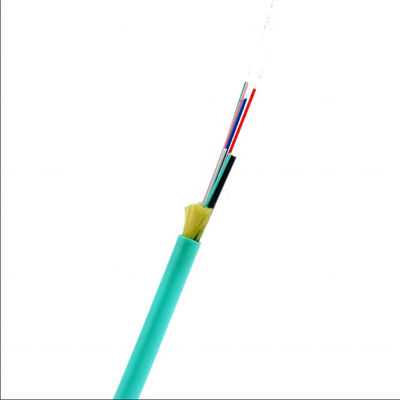

GJFJV Turquoise Sheath 12core Multimode 0M3-150 Tight Buffered Indoor Fiber Optic Cable



Product Description
Multi core optical cable use single 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,and the cable is completed with a PVC or LSZH jacket.
Cable structure;
1. Fiber: 900um tight buffer fibers
2. Strength Member: Kevlar yarns
3. Outer Jacket:Flame resistant PVC or LSZH

Applications:
1.Optical fiber jumper or pigtail
2.Indoor riser level and plenum level cable distribution
3.Interconnect between instruments,communication equipment's
core
Optical cable size(mm)
Net weight(KG)
Allowable tensile force(N)
Allowable crushing force(N/10cm)
Operating
temperature℃
Long term
short term
Long term
short term
-30℃-60℃
4
4.3
≈30
300
600
200
1000
8
5.0
≈40
300
600
200
1000
12
6.0
≈45
300
600
200
1000
24
8.5
≈52
300
600
200
1000


50/125μm
62.5/125μm
G652
G655
Attenuation
850nm
≤3.5dB/km
≤3.5dB/km



1300nm
1.5dB/km
1.5dB/km



1310nm


≤0.45dB/km
≤0.50dB/km

1550nm


≤0.30dB/km
≤0.50dB/km
Bandwidth(classA)
850nm
≥500Mhz.km
≥200Mhz.km



1300nm
≥1000Mhz.km
≥600Mhz.km


Numerical Aperture

0.2±0.015NA
0.275±0.015NA


Cable cut-off wavelength



≤1260nm
≤1480nm
Attenuation at temperature cycling(-40℃-70℃)
1300nm
≤0.25dB/km
≤0.25dB/km


1550nm


≤0.10dB/km
≤0.10dB/km



GJFJV Turquoise Sheath Tight Buffered Indoor 0M3-150 Multimode Fiber Cable 0GJFJV Turquoise Sheath Tight Buffered Indoor 0M3-150 Multimode Fiber Cable 1GJFJV Turquoise Sheath Tight Buffered Indoor 0M3-150 Multimode Fiber Cable 2

FAQ



1.What is your MOQ?

Could be coordinated if you have detail requirements.



2.How about your delivery date?
Delivery date is about 3-5days, it depends on the order quantity.

3.Can you supply sample for customers?
Of course, however the delivery cost will be charged on customer's account.

4.How about your price?
We are supplying products with very competitive price based on good performance.

5.Do you offer OEM Service?
We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description.
