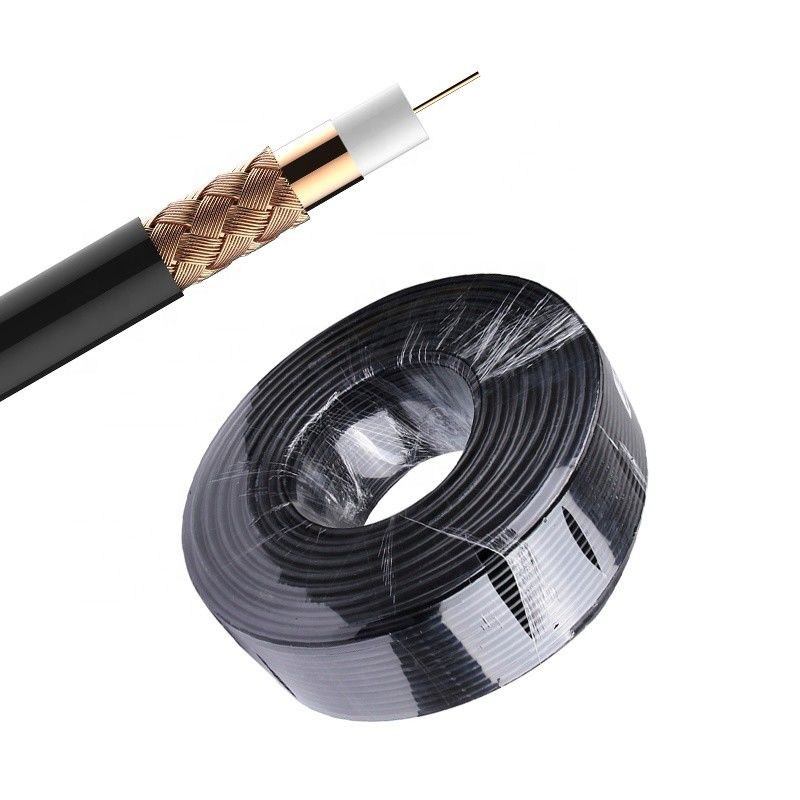

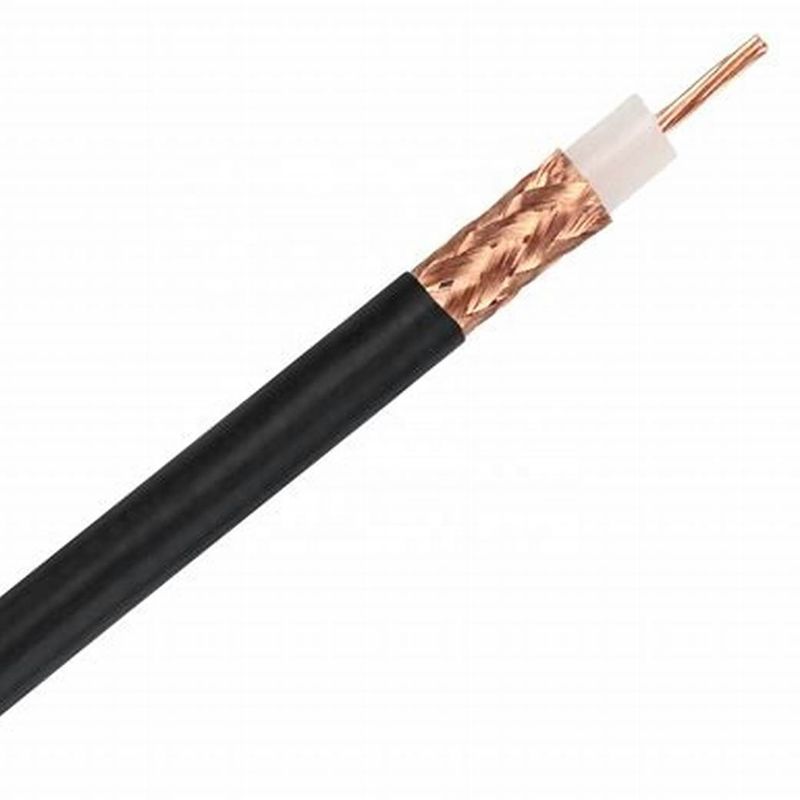

RG6 Quad Shield CCTV Coaxial Cable For Communication

RG6 Quad Shield CCTV Coaxial Cable For Communication
RG6 Quad Shield CCTV Coaxial Cable For Communication RG6 Quad Shield CCTV Coaxial Cable For Communication RG6 Quad Shield CCTV Coaxial Cable For Communication RG6 Quad Shield CCTV Coaxial Cable For Communication RG6 Quad Shield CCTV Coaxial Cable For Communication RG6 Quad Shield CCTV Coaxial Cable For Communication

Large Image :  RG6 Quad Shield CCTV Coaxial Cable For Communication

Product Details:
Place of Origin: Guangzhou,China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: CE/ RoHS/ ETL/ ISO
Model Number: RG6
Payment & Shipping Terms:
Minimum Order Quantity: 20000 Meters
Price: Negotiation
Packaging Details: 100 Meters/ Box
Delivery Time: 12-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 100000 Meters/ Day

RG6 Quad Shield CCTV Coaxial Cable For Communication

Description
Conductor:: BC/CCS Shield:: Al Foil+braiding
Packing:: Wooden Drum/Carton Input Impedance:: 50ohm
Type:: Coaxial Color:: Black
Jacket:: PVC/PE/LZSH Length:: 100m 305m 1000ft 500m
High Light:

RG6 CCTV Coaxial Cable

,

Quad Shield CCTV Coaxial Cable

,

500m Coaxial TV Cable

RG6 Quad Shield Coaxial Cable CCTV Coaxial Cable Rg6 For Communication



Specifications:

1,RG6:1.02CCS+4.57FPE+AL Foil+Al Braids+6.9PVC

2,CE.ROHS,ISO

3,MOQ:30KM

4,Price:Factory price

5,Lead time:15 days

Construction:

Inner Conductor: 1.02mm Copper Clad Steel (22%)
Dielectric: 4.57± 0.05mm Foam PE
Shield: Bonded Aluminum PET Aluminum
Braid Coverage: 0.16mm *16*4(60%)AL-Mg Alloy
Jacket: 6.85± 0.05 mm PVC(75 degree UL)
Jelly/APD: Per Customized



Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.



Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)

Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz) Maximum (dB/100ft) Maximum (dB/100m)
5 0.58 1.90
55 1.60 5.25
211 2.87 9.41
250 3.10 10.16
300 3.43 11.25
350 3.72 12.20
400 4.00 13.11
450 4.26 13.97
500 4.55 14.92
550 4.71 15.44
600 5.05 16.56
750 5.59 18.33
865 7.50 19.51
1000 6.54 21.44


Product structure

Conductor :Solid bare copper

Insulation: Solid PE

Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids

Jacket:polyvinyl chloride / FR-PVC



Electrical characteristics

Impedance:75±3OHM

Capacitance:66±3pF/m

Max attention: 20°C

Flammability grade: CMX, CM

Operating temperature: -25~70°C or -40~70°C

Insulation resistance: 5000MOHM/km

Reference GB/T14864-93 Standards.



Description for RG58U with power cable

Mainly used for the distribution and access of electronic communication equipment,

RF transmitter unit of communication system, building cabling and CATV;

the most striking features are broadband and high speed; currently,

also widely used in the multimedia transmission field; conforms to RG58U.

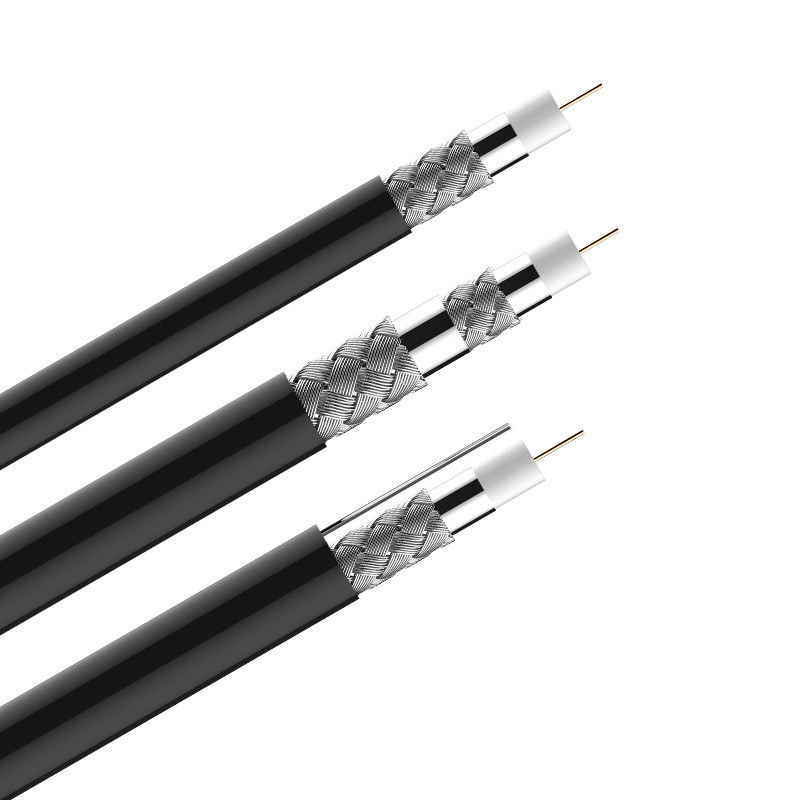

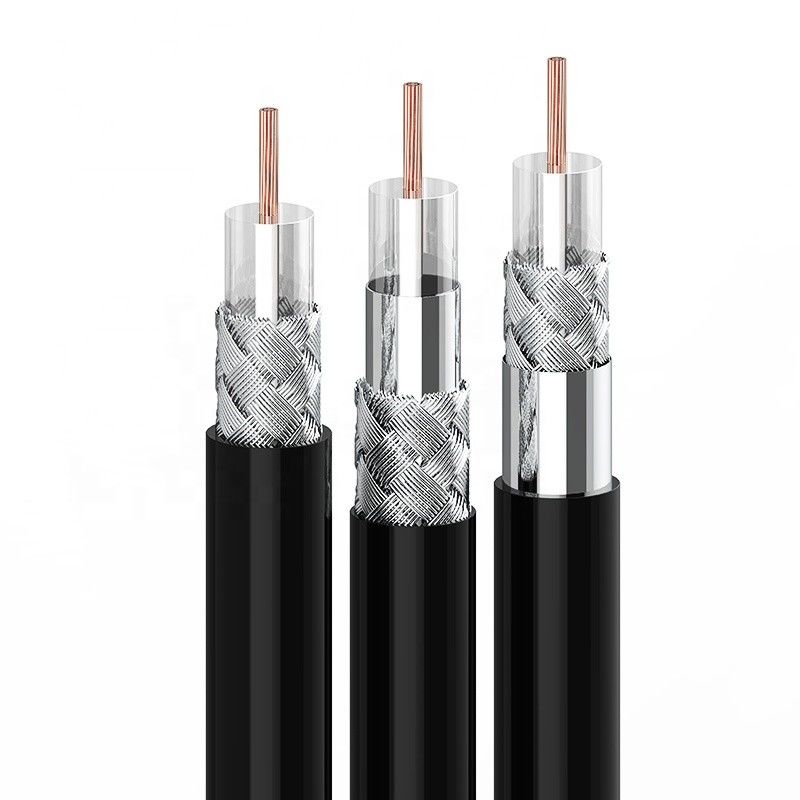

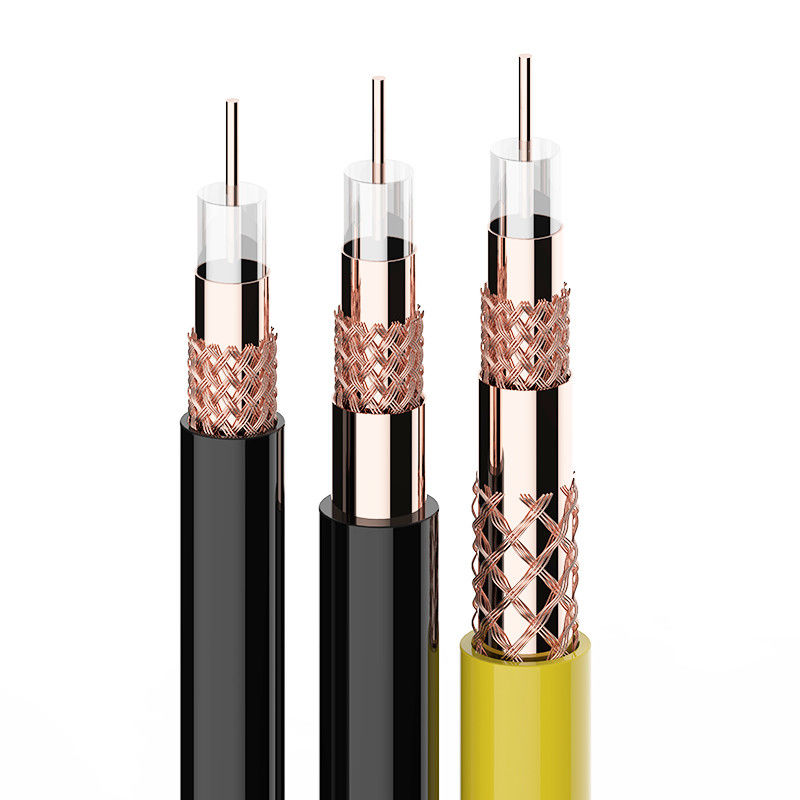

RG6 Basic construction

STANDARD SHIELD
TRI-SHIELD
QUAD-SHIELD

CONDUCTOR
MATERIAL
BC/CCS
BC/CCS
BC/CCS
Nom.Dia.
18AWG
18AWG
18AWG

DIELECTRIC
MATERIAL
Foam PE
Foam PE
Foam PE
Nom.Dia.
4.57mm
4.57mm
4.57mm


SHIELD
MATERIAL
Al Foil+Al Braiding
Al Foil+Al Braiding+Al Foil
(Al Foil+Al Braiding)*2
COVERAGE
40%-95%
40%-95%
40%-60%


JACKET
MATERIAL
PVC/PE
PVC/PE
PVC/PE
Nom.Thick.
0.80mm
0.80mm
0.86mm
Nom.Dia.
6.91mm
7.06mm
7.62mm

MESSENGER
MATERIAL
Galvanized steel wire
Nom.Dia.
1.30mm
1.30mm
1.30mm









RG6 Quad Shield CCTV Coaxial Cable For Communication 0RG6 Quad Shield CCTV Coaxial Cable For Communication 1RG6 Quad Shield CCTV Coaxial Cable For Communication 2
