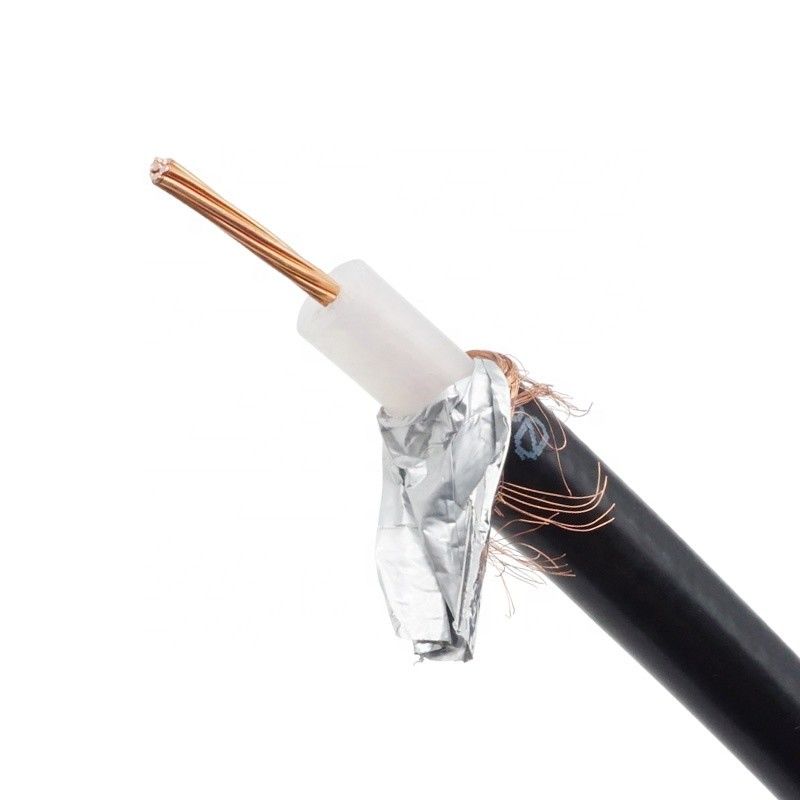

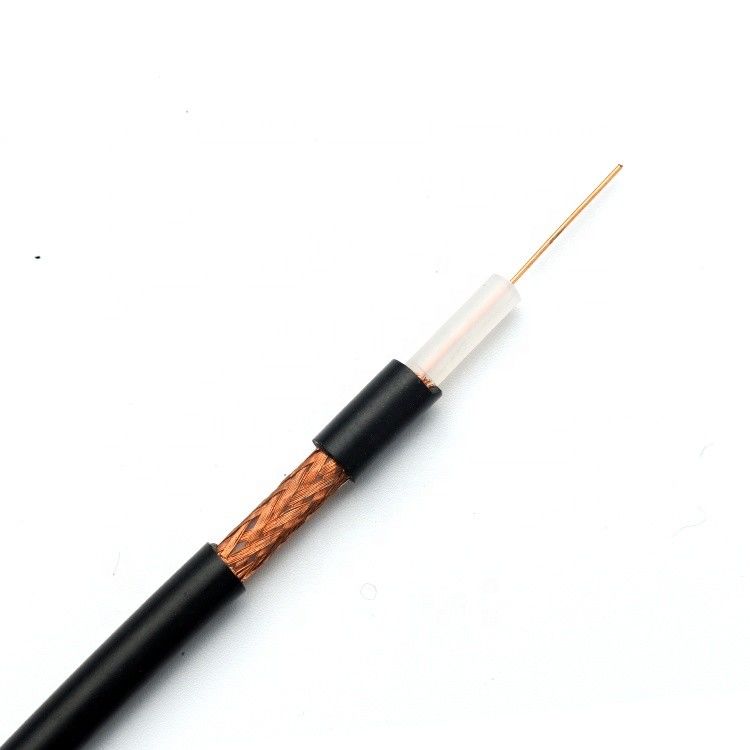

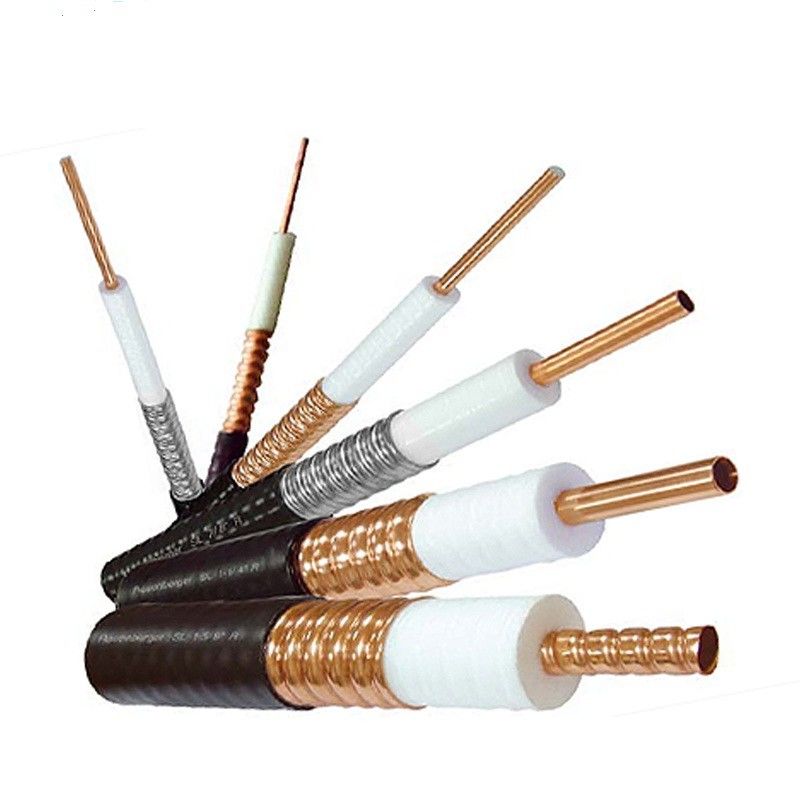

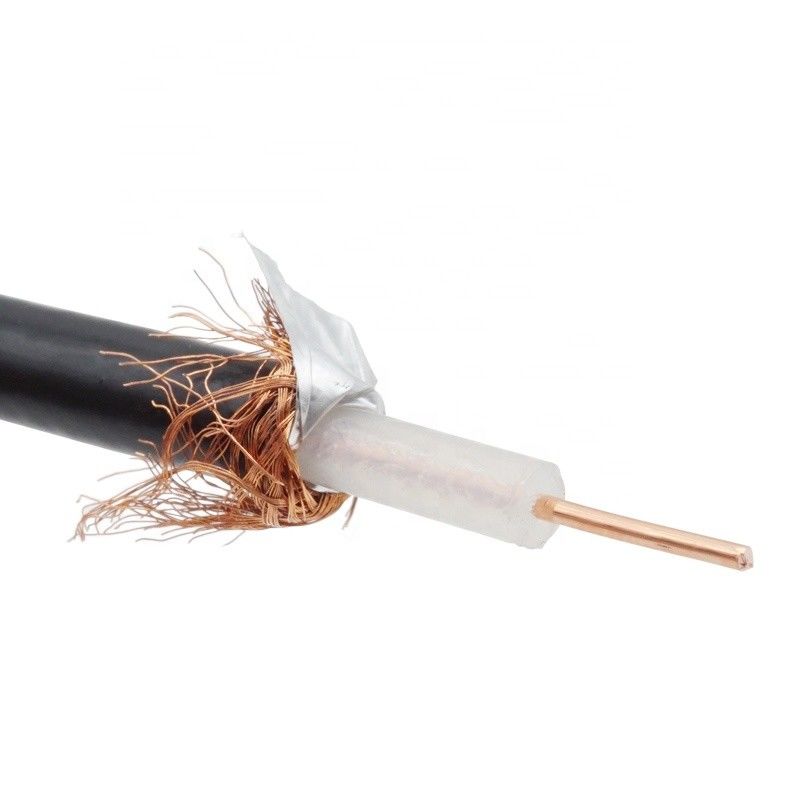

CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm

CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm
CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm

Large Image :  CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm

Product Details:
Place of Origin: Guangzhou,China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: CE/ RoHS/ ETL/ ISO
Model Number: RG6
Payment & Shipping Terms:
Minimum Order Quantity: 20000 Meters
Price: Negotiation
Packaging Details: 100 Meters/ Box, Coil/Plastic Reel/Wooden reel/Carton/pallet
Delivery Time: 12-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 200000 Meters per Week

CCS PVC Jacket RG6 Quad Shield Coaxial Cable For CATV Satellite 75ohm

Description
Number Of Conductor:: 1 Length:: 100m/200m/300m/customized
Jacket:: PVC/PE/LSZH Conductor Material:: BC/CCS 1.02mm
Shield:: Al/Copper Foil+40-95% Al/CCA/Cu Braiding Insulation:: FPE
Color:: White Application:: CATV
High Light:

CCS Coaxial Cable

,

RG6 Coaxial Cable

,

75ohm Coaxial Cable

CCS Shield PVC/PE Jacket RG6 Quad Shield Coaxial Cable For CATV/Satellite 75ohm



Construction and Dimension
Item
RG59
RG58
RG6
RG7
RG11
Material of inner conductor
Cu
Cu
Cu
Cu
Cu
Diameter of inner conductor(mm)
0.81±0.02
19*0.20±0.01
1.00±0.02
1.29±0.02
1.63±0.02
Material of dielectric
Foam PE
PE
Foam PE
Foam PE
Foam PE
Diameter of Dielectric(mm)
3.66±0.15
2.95
4.57±0.01
5.72
7.11
Material of Shield
ALfoil+Al brading
BC/TC braiding
ALfoil+Al brading
ALfoil+Al brading
ALfoil+Al brading
Coverage
40%--95%
95%
40%--95%
40%--95%
40%--95%
Diameter of 1st outer conductor
(mm)
3.90
-
4.90
5.90
7.52
Diameter of 2nd outer conductor
4.12
--
5.00
-
7.80
Material of Jacket
PVCPE
PVCPE
PVCPE
PVCPE
PVCPE
Diameter of Jacket
6.30
4.95
6.90
8.10
10.16

Specifications:

1,RG6:1.02CCS+4.57FPE+AL Foil+Al Braids+6.9PVC

2,CE.ROHS,ISO

3,MOQ:30KM

4,Price:Factory price

5,Lead time:15 days

Construction:

Inner Conductor: 1.02mm Copper Clad Steel (22%)
Dielectric: 4.57± 0.05mm Foam PE
Shield: Bonded Aluminum PET Aluminum
Braid Coverage: 0.16mm *16*4(60%)AL-Mg Alloy
Jacket: 6.85± 0.05 mm PVC(75 degree UL)
Jelly/APD: Per Customized



Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.



Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)



Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz) Maximum (dB/100ft) Maximum (dB/100m)
5 0.58 1.90
55 1.60 5.25
211 2.87 9.41
250 3.10 10.16
300 3.43 11.25
350 3.72 12.20
400 4.00 13.11
450 4.26 13.97
500 4.55 14.92
550 4.71 15.44
600 5.05 16.56
750 5.59 18.33
865 7.50 19.51
1000 6.54 21.44


Product structure

Conductor :Solid bare copper

Insulation: Solid PE

Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids

Jacket:polyvinyl chloride / FR-PVC



Electrical characteristics

Impedance:75±3OHM

Capacitance:66±3pF/m

Max attention: 20°C

Flammability grade: CMX, CM

Operating temperature: -25~70°C or -40~70°C

Insulation resistance: 5000MOHM/km

Reference GB/T14864-93 Standards.
