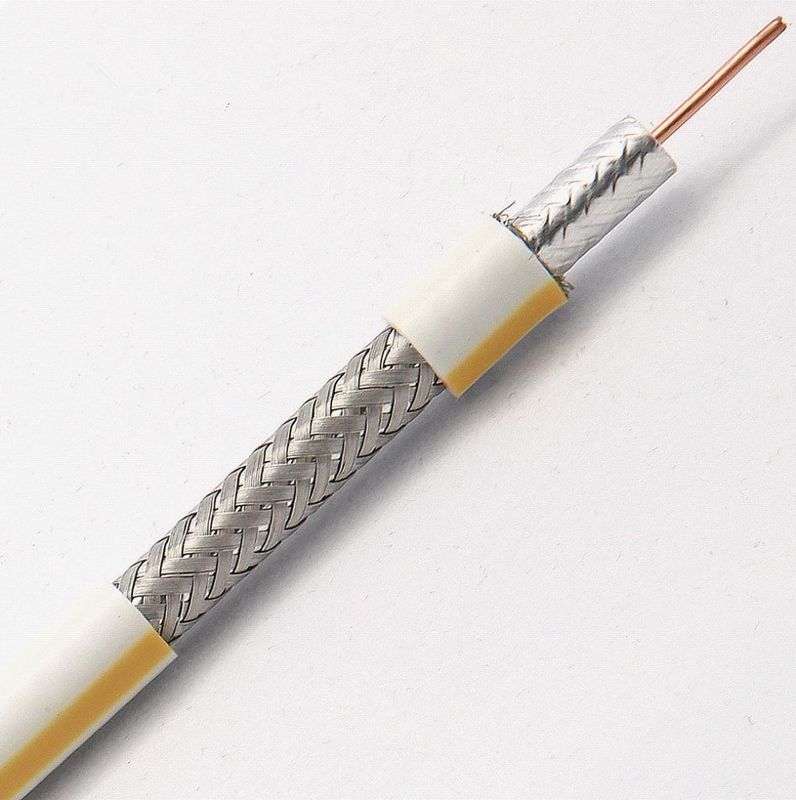

CCTV Coaxial Cable Satellites RG6 100m Digital TV Aerial Cable
1,RG6:1.02CCS+4.57FPE+AL Foil+Al Braids+6.9PVC
5,Lead time:15 days
Inner Conductor: 1.02mm Copper Clad Steel (22%)
Dielectric: 4.57± 0.05mm Foam PE
Shield: Bonded Aluminum PET Aluminum
Braid Coverage: 0.16mm *16*4(60%)AL-Mg Alloy
Jacket: 6.85± 0.05 mm PVC(75 degree UL)
Jelly/APD: Per Customized
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)
Conductor :Solid bare copper
Insulation: Solid PE
Braids:Foil + CCA 48P/64P/80P/96P/112P/128P/144P/160P Braids
Jacket:polyvinyl chloride / FR-PVC
Max attention: 20°C
Flammability grade: CMX, CM
Operating temperature: -25~70°C or -40~70°C
Insulation resistance: 5000MOHM/km
Reference GB/T14864-93 Standards.
1) Land mobile and cellular radio
2) Earth station antenna jumper cables
3) Jumpers for equipments room and antenna connection
4) Military data links
5) VLF, AM and FM radio broadcast systems
6) Point to point terrestrial microwave
7) Airborne and shipboard radar systems
8) Tactical, restoration and portable communication system
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in dongguan city.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), , Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? (How long do you need to prepare my goods?
A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well
Our Factory Are Professional Manufacturer In Producing Widely Product Range Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat8
Utp/Ftp/Sftp/Stp Network Cable,
Power Cable,Coaxial Cable,
Telephone Cable Etc.
Welcome To Visit Our Factory !
