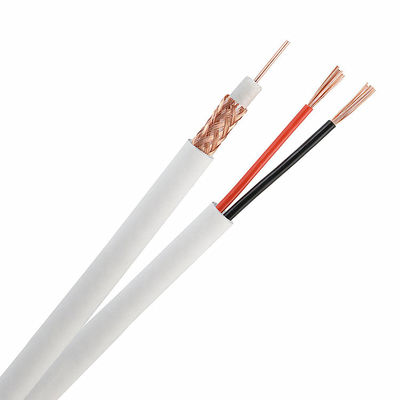

White CU Conductor Coaxial TV Cable For Satellite

White CU Conductor Coaxial TV Cable For Satellite

CU Conductor Coaxial TV Cable

ODM Coaxial TV Cable

Place of Origin:

Guangzhou,China

Brand Name:

OEM/ ODM/ YUEXIANKE

Certification:

CE/ RoHS/ ETL/ ISO

Model Number:

RG59

Contact Us
Request A Quote
Product Details
Length::
305m/reel
Application::
CCTV System, Satellite
Jacket::
New PVC
Conductor Material::
CU
Braiding::
32/48/64/96/112
Color::
White ,Black
Number Of Conductor::
1
Type::
Coaxial Cable CCTV
High Light:

CU Conductor Coaxial TV Cable

,

ODM Coaxial TV Cable

Payment & Shipping Terms
Minimum Order Quantity
20000 Meters
Price
Negotiation
Packaging Details
100m/roll , 200m/roll , 305m /roll , 500m/roll
Delivery Time
12-15 Work Days
Payment Terms
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability
200000 Meters per Week
Product Description

Manufacturer CCTV RG59 Coaxial Cable Siamese Cable With 2C Cable



Products Description

Item
Material
Specification
Conductor
BC/CCS
0.81mm(20AWG,0.032'')
Dielectric
FPE
3.66mm(0.144'')
1st Shield

Al Foil
100%, Overlap>2mm
2nd Shield
BC or Al Braiding
40%-95%
53%
3rd Shield

Al Foil
-
100%, Overlap>2mm
4th Shield

BC or Al Braiding
-
-
40%

Jacket PVC/PE
Outer Diameter
6.1mm(0.24'')
6.1mm(0.24'')
6.73mm(0.265'')
Nominal Thickness
0.81mm(0.032'')
0.76mm(0.030'')
0.86mm(0.034'')
Messenger

Steel
1.30mm
Dielectric Adhesion

>20N/5cm

Breaking Strength of Messenger

82kgf

Impendence

75±3 Ohm

Capacitance
50±3.0 nf/KM




Return Loss (100% swept)
1~470MHz
≥22dB

470~1000MHz
≥20dB

1000~2200MHz
≥18dB




White CU Conductor Coaxial TV Cable For Satellite 0White CU Conductor Coaxial TV Cable For Satellite 1





Technological Process

White CU Conductor Coaxial TV Cable For Satellite 2



Testing Instrumentation

White CU Conductor Coaxial TV Cable For Satellite 3

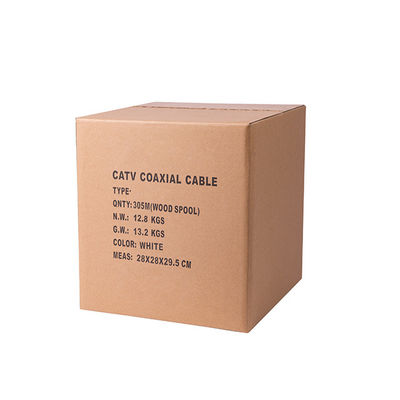

Delivery

White CU Conductor Coaxial TV Cable For Satellite 4





FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well







Our Factory Are Professional Manufacturer In Producing Widely Product Range Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat8

Utp/Ftp/Sftp/Stp Network Cable,

Power Cable,Coaxial Cable,

Telephone Cable Etc.



Welcome To Visit Our Factory !
