RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

Certification
China Guangzhou Jingchang Wire & Cable Co.,LTD certification
China Guangzhou Jingchang Wire & Cable Co.,LTD certification
Customer Reviews
We're very Pleased to cooperate with you. Your good service makes me be satisfied! Will definitely be ordering more in the futher.

—— —— John Smith

Good quality Good Service! I am impressed. Keep cooperating!

—— —— Mohamed Rebai

I'm very pleased with the service of this company,I believe that their business will be better and better.

—— —— Ashot Matinyan

I'm Online Chat Now

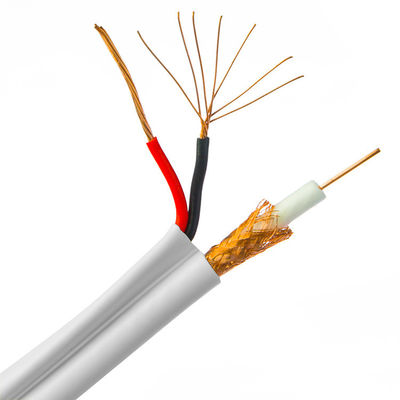

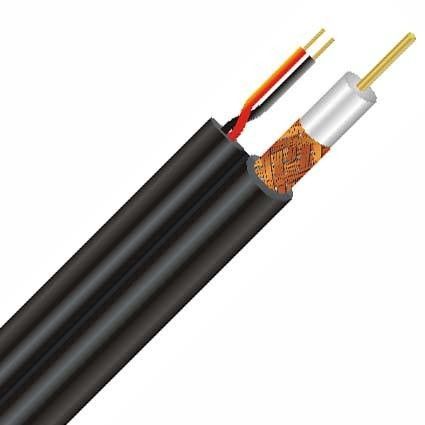

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera
RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

Large Image :  RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

Product Details:
Place of Origin: Guangzhou,China
Brand Name: OEM/ ODM/ YUEXIANKE
Certification: CE/ RoHS/ ETL/ ISO
Model Number: RG59
Payment & Shipping Terms:
Minimum Order Quantity: 30000 meters
Price: Negotiation
Packaging Details: 100m/roll , 200m/roll , 305m /roll , 500m/roll
Delivery Time: 12-15 Work Days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 200000 Meters per Week

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera

Description
Length:: 100m/roll Application:: CCTV System, Satellite
Jacket:: New PVC Conductor Material:: CU
Color:: White ,Black Number Of Conductor:: 1
2C:: 2*18AWG CCA RG59:: 0.81CCS+3.66 FPE+AL FOIL+ 48/0.12 AL+PVC
High Light:

75OHM Siamese Coaxial Cable

,

RG59 Siamese Coaxial Cable

,

CCTV Camera Siamese Coaxial Cable

RG59+2C Power 75OHM Siamese RG59 Coaxial cable With Power Cable For CCTV Camera



Products Description:

Item
Material
Specification
Conductor
BC/CCS
0.81mm(20AWG,0.032'')
Dielectric
FPE
3.66mm(0.144'')
1st Shield

Al Foil
100%, Overlap>2mm
2nd Shield
BC or Al Braiding
40%-95%
53%
3rd Shield

Al Foil
-
100%, Overlap>2mm
4th Shield

BC or Al Braiding
-
-
40%

Jacket PVC/PE
Outer Diameter
6.1mm(0.24'')
6.1mm(0.24'')
6.73mm(0.265'')
Nominal Thickness
0.81mm(0.032'')
0.76mm(0.030'')
0.86mm(0.034'')
Messenger

Steel
1.30mm
Dielectric Adhesion

>20N/5cm

Breaking Strength of Messenger

82kgf

Impendence

75±3 Ohm

Capacitance
50±3.0 nf/KM




Return Loss (100% swept)
1~470MHz
≥22dB

470~1000MHz
≥20dB

1000~2200MHz
≥18dB




RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera 0RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera 1





Technological Process

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera 2



Testing Instrumentation

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera 3



Delivery

RG59 2C Power 75OHM Siamese Coaxial Cable For CCTV Camera 4





FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.

Q2: Where is your factory located? How can I visit there?

A2:Our factory are located in dongguan city.

You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.

Q3: May I buy samples from you?

A3: Yes! You are welcome to place sample order to test our superior quality and services.

Q4: What is your Warranty?

A4: All the products will have 12 months Warranty

Q5:What payment method do you accept?

A5:T/T(Bank transfer), , Money Gram, Paypal, etc.

Q6: Can you put my brand name (logo) on these products?

A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q7: May I know the status of my order?

A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.

Q8: What’s the leading time? (How long do you need to prepare my goods?

A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.

Q9: How will you deliver my goods to me?

A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.

Q10: Can you provide us more other products to us to help us to save more shipping costs?

A10: Yes. There’re kinds of HDMI Cables, VGA Cables, DVI Cables, Data USB cables, Display port on DB 9, DB 25, Aux Audio and video Cables, Cat network LAN Cables will be the main products line of Nengjie Factory. The OEM bulk order will be accept as well







Our Factory Are Professional Manufacturer In Producing Widely Product Range Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat8

Utp/Ftp/Sftp/Stp Network Cable,

Power Cable,Coaxial Cable,

Telephone Cable Etc.



Welcome To Visit Our Factory !
