Product Details:
|
| Number Of Conductors:: | 2 | Zero Dispersion Wavelength:: | 1300~1324nm |
|---|---|---|---|
| Cladding Diameter:: | 125±0.7μm | Coating Diameter:: | 243±7μm |
| Fiber Count:: | 1/2/4 Cores | Weight (kg/km):: | 40 |
| Attenuation Discontinuity:: | ≤0.05 DB | Zero Dispersion Slope:: | ≤0.090ps/(nm2.km) |
| High Light: | Figure 8 Fiber Optic Cable,FTTH Drop Fiber Optic Cable,Aerial Fiber Optic Cable |
||

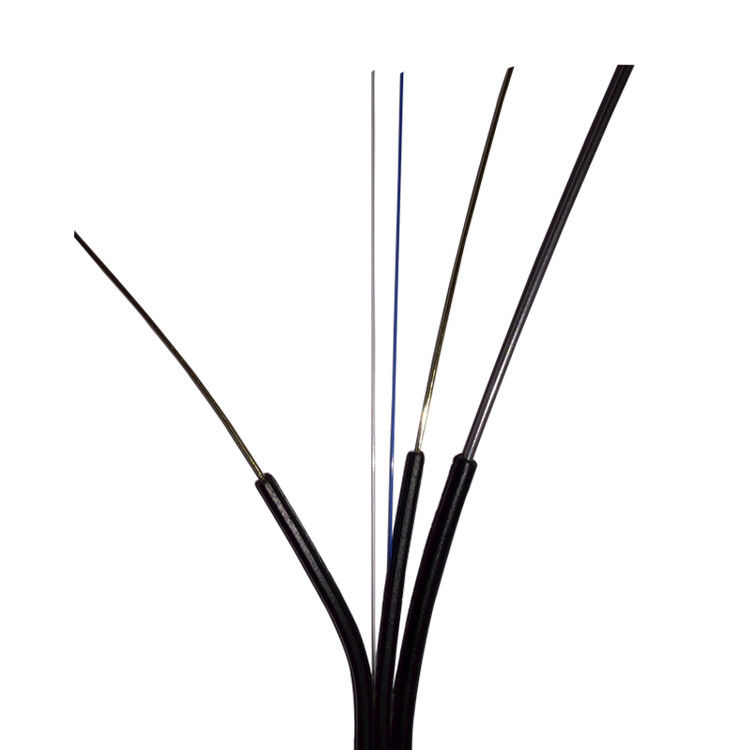

Outdoor Overhead Aerial Self-supporting FTTH Drop Figure 8 Fiber Optic Cable
Products Description
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.657A1 | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | ||
| 10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
| 1turn×10mm radius@1625nm | dB | ≤1.5 | ||

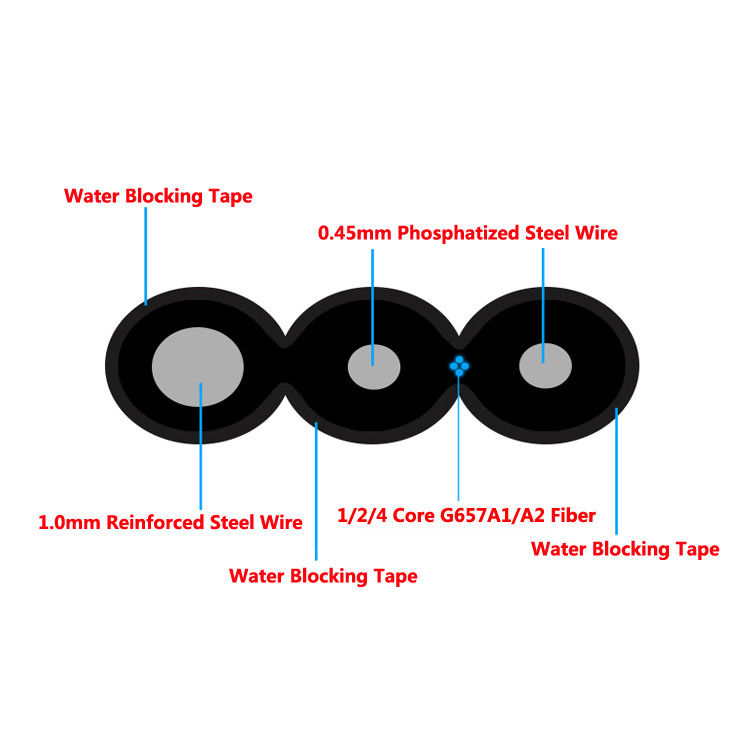

Cable Parameters
| Items | Specifications | |
| Fiber Count | 2 | |
| Colored Coating Fiber | Dimension | 250±15μm |
| Color | Blue, Orange | |
| Strength Member | Dimension | 0.5mm |
| Material | FRP | |
| Self-Supporting Member | Dimension | 1.0mm |
| Material | Steel Wire | |
| Jacket | Dimension | 5.2±0.2mm×2.0±0.1mm |
| Material | LSZH | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension (Long Term) | N | 300 |
| Tension (Short Term) | N | 600 |
| Crush (Long Term) | N/10cm | 1000 |
| Crush (Short Term) | N/10cm | 2200 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
