Product Details:
|
| Conductor Diameter: | 0.57mm/23AWG | Insulation: | Color-coded PE |
|---|---|---|---|
| Service: | OEM/ODM | Color: | Custom |
| Transmission Velocity: | 65% | Operating Temperation: | 75 °C |
| High Light: | CPR UTP Lan Cable,ETL UTP Lan Cable,23AWG indoor lan cable |
||
-10/100 Base -T4
-100 Base -TX
-1000Base-T (Gigabit Ethernet)
-155Mbps ATM
-622Mbps ATM
| Type | Utp cat6 |
| Application | Net-working |
| Conductor | Bare copper or Copper clad aluminum |
| Conductor diameter | 0.57mm/23AWG |
| Shield | AL Foil(Two-side plastic) |
| Jacket Material | PVC (CM,CMR,CMP) LOSH |
| Insulation | Color-coded PE |
| Jacket | Lead free PVC or LSZH or PE |
| Related temperature | 60°C,75°C |
| OEM/ODM | Offered |
| Color | As request |
| Package | Reel Pull-out Box |
What is the electrical properties of the cale ?
| DC resistance(Max.) | Ω/100m | 9.5 |
| DC Resistance Imbalance(Average) | % | 2.5 |
| Working Capacitance(Max.) | nF/100m | 5.4 |
| Insulation Resistance | MΩ.km | 10000 |
| Transmission Velocity | % | 65 |
| Operating temperation | °C | 75 |
| Frequency | Return Loss | Attenuation | NEXT | PSNEXT | ELFEXT | PSELFEXT | Characteristic Impedance | Transmission Delay |
| MHZ | dB | dB | ≥dB | dB | ≥dB | ≤dB | Ω | ≤ns/100m |
| 1.0 | 20.0 | 2.0 | 65.3 | 62.3 | 64.0 | 61.0 | 100±15 | 570.0 |
| 4.0 | 23.0 | 4.1 | 56.3 | 53.3 | 52.0 | 49.0 | 100±15 | 552.0 |
| 10.0 | 25.0 | 6.5 | 50.3 | 47.3 | 44.0 | 41.0 | 100±15 | 545.4 |
| 16.0 | 25.0 | 8.2 | 47.2 | 44.2 | 39.9 | 36.9 | 100±15 | 543.0 |
| 20.0 | 25.0 | 9.3 | 45.8 | 42.8 | 38.0 | 35.0 | 100±15 | 542.0 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 34.1 | 31.1 | 100±15 | 540.4 |
| 62.5 | 21.5 | 17.0 | 38.4 | 35.4 | 28.1 | 25.1 | 100±15 | 538.6 |
| 100.0 | 20.1 | 22.0 | 35.3 | 32.3 | 24.0 | 21.0 | 100±15 | 537.6 |

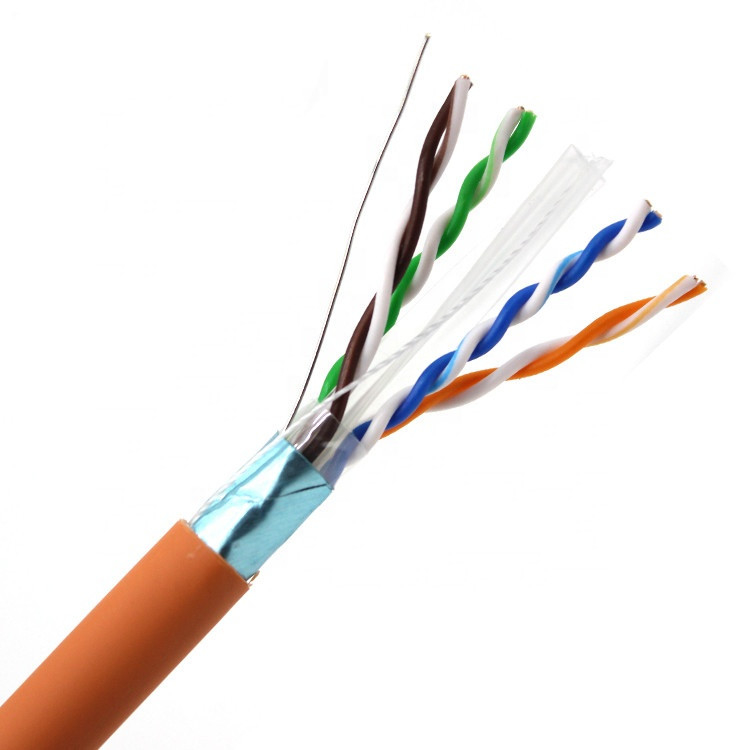

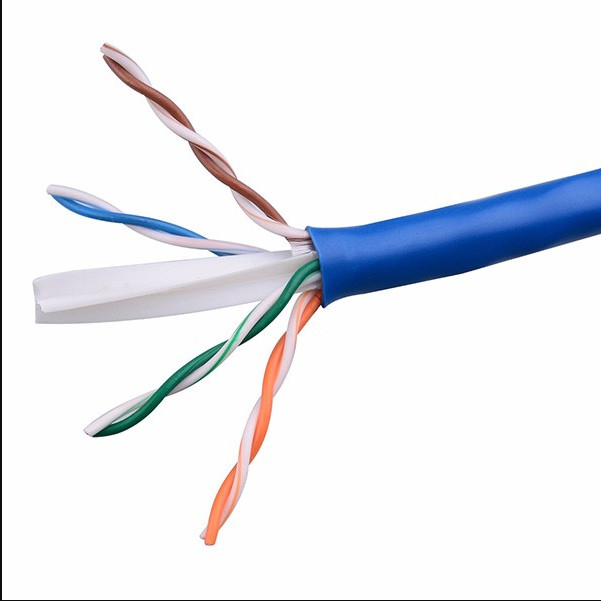

What is the structure of the cable ?
About Us
Guangzhou Jingchang Wire & Cable CO., LTD. is a High-Tech Enterprises which devoted to the comprehensive Network cabling system's production, research and marketing.
Jingchang introduced advanced fully automated production equipment, having professional technical staff and best R&D management team. Strictly according to the ISO9001 quality management system, providing our customers with higher quality products and services.
FAQ
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in dongguan city.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), , Money Gram, Paypal, etc.
Contact Person: Harper
Tel: +86 18925126499
