Product Details:
|
| Model NO: | GJPFJH | Fiber Brand:: | Corning / YOFC / Fiberhome |
|---|---|---|---|
| Cover Material:: | PVC Or LSZH | Water Blacking Tape:: | Yes |
| Type:: | Singlemode | Fiber Count:: | 1/2/4/6/8/12/24cores |
| Certification: | ISO9001,ROHS | Fiber Type: | G652D,G657A2 |
| High Light: | UL Fiber Optic Cable,GJPFJH Fiber Optic Cable,0.9mm indoor fiber cable |
||

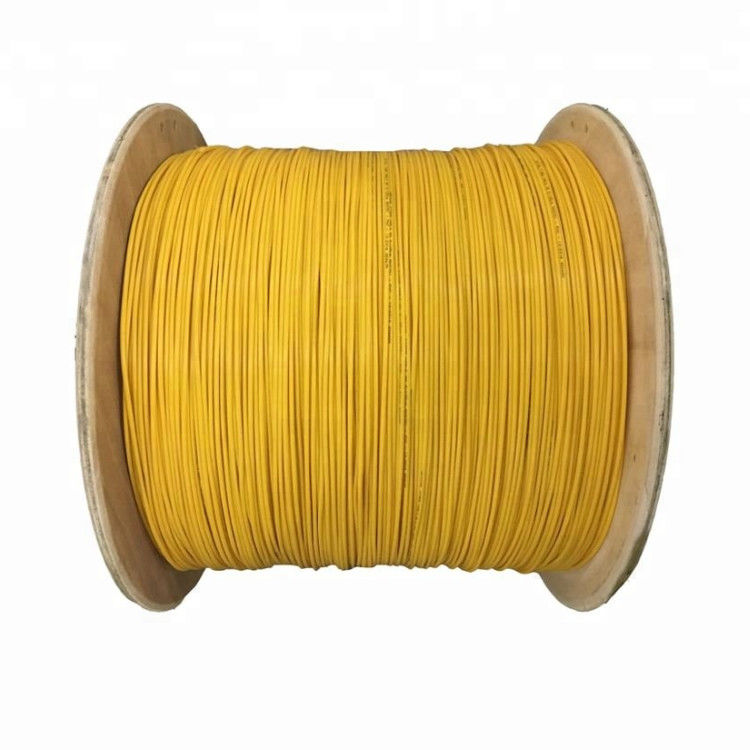

Indoor Fiber Optic Armoured Cable 12 STrand SM Fiber Optic Cable GJPFJH 6B6 0.9mm
Application
1. Used in pigtails and patch cords;
2. Used in optical connections in optical communication equipment rooms and optical distribution frames,and optical apperatus connectors;
3. Used in indoor cabling.
Feature
1. Excellent stripping quality;
2. Single mode and Multimodel fiber for options;
3. Flame retardant characteristics meets the requirements of relevent standards;
4. Easy to splice,good capacity of data transmission;
Fiber color coding and Tube color coding
| Color code | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Slate | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Rose | Aqua |
Optical cable parameters:
| Fiber Count | Outside OD(mm) | Tight Buffer OD(mm) | Weightkg/km | Tensile Strength(N) | Crush Resistance(N/100mm) | Bending Radius(mm) | |||
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D |
MARK
Cable Mark: Brand,Cable type,Fiber type and counts,Year of manufacture,Length marking .
TEST REPORT
Test report and certification supplied.
Feature
1.Excellent stripping quality;
2.Single mode and Multimodel fiber for options;
3.Flame retardant characteristics meets the requirements of relevent standards;
4.Easy to splice,good capacity of data transmission;
