Place of Origin:
China
Brand Name:
OEM/ ODM/ YUEXIANKE
Certification:
UL/ CE/ ETL/ ROHS/ ANATEL
Model Number:
GJYXCH

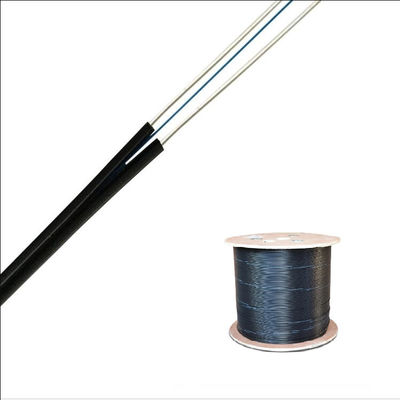

GJYXCH 4 Core Singlemode Fiber Optic Cable G652D G657A2 FRP
Product Description
A single-mode fiber is a single glass fiber strand used to transmit a single mode or ray of light. Single-mode fiber features only one transmission mode. Compared with multi-mode fiber, it can carry higher bandwidths; however, it needs to have a light source having a narrow spectral width.
Product Characteristics
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Application
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring
Structural Parameter
| Model No. | Count |
Cable Size (mm) |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
| GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
| GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 20 | 300/600 | 1000/2200 | 15/30 |
Optical Fibre Performance
| Type | Fiber attenuation(+20℃) | OFL | Band Width | 10G Ethernet link length | Minimum bending radius | |||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Typical value | MAX | Typical value | MAX | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Transportation / storage / use temperature: -20 ℃ ~ + 60 ℃
FAQ
Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.
Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!
Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.
Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.
Send your inquiry directly to us
